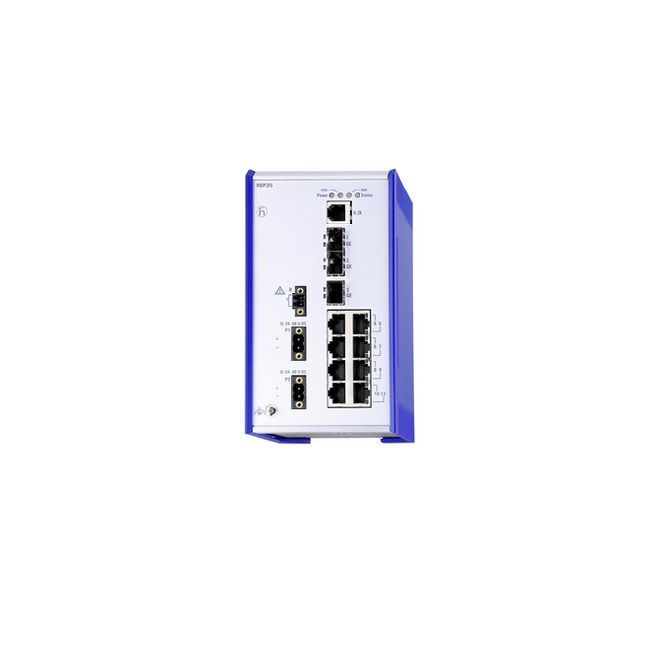

Hirschmann RSP35-08033O6TT-SCCZ9HPE2AXX.X.XX Managed Industrial Switch
Product Overview
Hirschmann RSP35-08033O6TT-SCCZ9HPE2AXX.X.XX is a managed industrial switch for DIN rail installation. The RSP series features hardened, compact, fanless industrial Ethernet switches with Fast Ethernet and Gigabit uplink options. It supports advanced redundancy protocols such as PRP, HSR, DLR, FuseNet, Fast MRP and other high-availability network functions for demanding industrial automation applications.
Main Features
- Managed Industrial Switch for DIN Rail, fanless design.
- 11 ports in total: 3 x SFP slots (100/1000 Mbit/s) and 8 x 10/100BASE-TX RJ45 ports.
- Enhanced software features including PRP, Fast MRP, HSR, NAT (-FE only) with L3 type.
- 2 x plug-in terminal block, 2-pin power supply/signaling contact, plus 1 x plug-in terminal block, 2-pin.
- 1 x RJ11 V.24 interface and 1 x SD card slot for ACA31 auto configuration adapter.
- Supports line/star topology with flexible network design.
- Industrial security according to IEC 62443-4-2 Security Level 1.
Technical Specifications
| Product model | RSP35-08033O6TT-SCCZ9HPE2AXX.X.XX |
| Configurator part number | 942053999 |
| Description | Managed Industrial Switch for DIN Rail, fanless design, Fast Ethernet, Gigabit uplink type, Enhanced. |
| Port type and quantity | 11 ports total: 3 x SFP slots (100/1000 Mbit/s); 8 x 10/100BASE-TX / RJ45. |
| Operating voltage | 2 x 24/36/48 VDC (18-60 VDC) |
| Power consumption | 19 W |
| Power output in BTU (IT)/h | 65 |
| Twisted pair cable length | 0-100 m |
| Fiber connection | Single mode and multimode fiber via M-SFP-xx / M-Fast SFP-xx modules. |
| Operating temperature | 0 to +60 degC |
| Storage temperature | -40 to +70 degC |
| Relative humidity | 10-95 %, non-condensing |
| Dimensions (W x H x D) | 90 mm x 164 mm x 120 mm |
| Weight | 1200 g |
| Mount type | DIN rail |
| IP protection rating | IP20 |
| Approvals | CE, FCC, EN61131 |
| Industrial security | IEC 62443-4-2 Security Level 1 |
| Guarantee | 60 months |
Software and Network Functions
The switch supports VLAN (802.1Q), QoS / port prioritization, IGMP Snooping/Querier, Jumbo Frames, Multiple Registration Protocols, static unicast/multicast entries, TOS/DSCP prioritization, Voice VLAN, QinQ, GMRP, GVRP, IP subnet-based VLAN, MAC-based VLAN and protocol-based VLAN.
Redundancy functions include HSR 1 GBit/s, PRP 1 GBit/s, Link Aggregation with LACP, Link Backup, RSTP, MSTP, HIPER-Ring, Fast MRP, MRP over Link Aggregation, Redundant Network Coupling and Sub Ring Manager.
Management and diagnostics functions include SSHv2, HTTP, HTTPS, SNMP v1/v2/v3, Telnet, LLDP, OPC-UA Server, HiDiscovery, HTML5 based management, Web-based management, port mirroring, RMON, system information, TCPDump, Syslog, Email Notification, SFP Management, Switch Dump and persistent logging on ACA.
Security and Industrial Profiles
Security features include configurable password policy, multiple privilege levels, port-based access control with 802.1X, RADIUS client, VLAN-based ACL, DHCP Snooping, Dynamic ARP Inspection, MAC Authentication Bypass, LDAP, signed firmware images and restricted management access.
Industrial profiles include EtherNet/IP, IEC61850 (MMS Server, Switch Model), Modbus TCP and PROFINET.
Accessories and Scope of Delivery
Available accessories include RPS 30, RPS 80 EEC and RPS 120 EEC rail power supply, terminal cable, Industrial HiVision network management, ACA31 auto-configuration adapter and 19 inch installation frame. Scope of delivery includes device, terminal blocks and general safety instructions.
