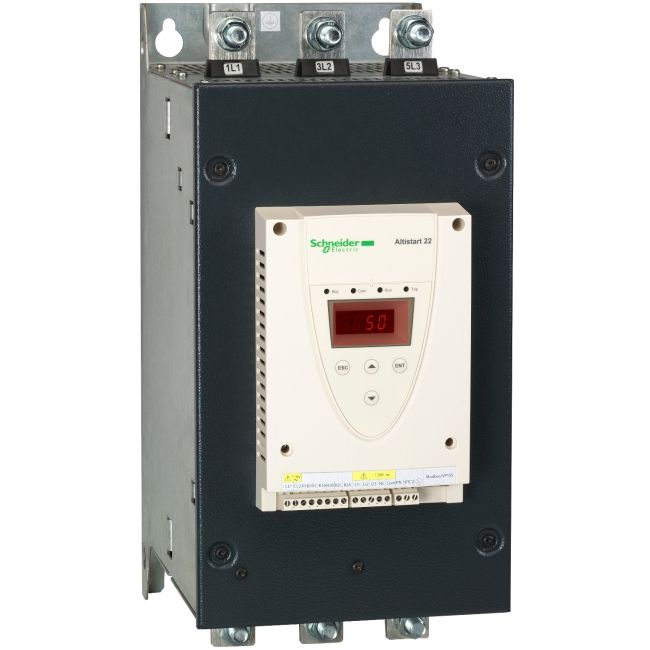

Model: ATS22C25S6

Supplier: Schneider

Categories: Motor Soft Starters

Please contact us for more information.

PRODUCT DESCRIPTION

We promise 100% original brand new with 1-year warranty.

If you are interested in our products, please feel free to contact us!

-----------------------------------------------------------

HONGKONG XIEYUAN TECH CO., LIMITED

Add: 7-A16,Caishen Commercial Plaza,Hankou Railway Station,Wuhan, China

Contact: Ms. Lily

Email: lily@hkxytech.com

WhatsApp/Skype: +86 13789949182



Schneider ATS



Main
range of product
Altistart 22

product or component type
Soft starter

product destination
Asynchronous motors

product specific application
Pumps and fans

component name
ATS22

Phase
3 phase

[Us] rated supply voltage
230...600 V - 15...10 %

motor power kW
132 kW 400 V
132 kW 440 V
75 kW 230 V
160 kW 500 V

factory setting current
240 A

power dissipation in W
129 W for standard applications

utilisation category
AC-53A

type of start
Start with torque control (current limited to 3.5 In)

IcL starter rating
250 A connection in the motor supply line for standard applications

IP degree of protection
IP00

Complementary
assembly style
With heat sink

function available
Internal bypass

supply voltage limits
195…660 V

supply frequency
50...60 Hz - 10...10 %

network frequency
45...66 Hz

device connection
In the motor supply line

[Uc] control circuit voltage
230 V - 15...10 % 50/60 Hz

control circuit consumption
20 W

discrete output number
2

discrete output type
Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O

minimum switching current
100 mA 12 V DC relay outputs)

maximum switching current
5 A 250 V AC resistive 1 relay outputs
5 A 30 V DC resistive 1 relay outputs
2 A 250 V AC inductive 0.4 20 ms relay outputs
2 A 30 V DC inductive 7 ms relay outputs

discrete input number
3

discrete input type
LI1, LI2, LI3) logic, 5 mA 4.3 kOhm

discrete input voltage
24 V <= 30 V

discrete input logic
Positive logic LI1, LI2, LI3 < 5 V <= 2 mA > 11 V, >= 5 mA

output current
0.4...1 Icl adjustable

PTC probe input
750 Ohm

communication port protocol
Modbus

connector type
1 RJ45

communication data link
Serial

physical interface
RS485 multidrop

transmission rate
4800, 9600 or 19200 bps

installed device
31

protection type
Phase failure line
Thermal protection motor
Thermal protection starter

marking
CE

type of cooling
Forced convection

operating position
Vertical +/- 10 degree

height
16.73 in (425 mm)

width
8.11 in (206 mm)

depth
11.77 in (299 mm)

net weight
72.75 lb(US) (33 kg)

Motor power range AC-3
55…100 kW 200…240 V 3 phase
110…220 kW 380…440 V 3 phase
110…220 kW 480…500 V 3 phase

motor starter type
Soft starter



ATS01N103FT
