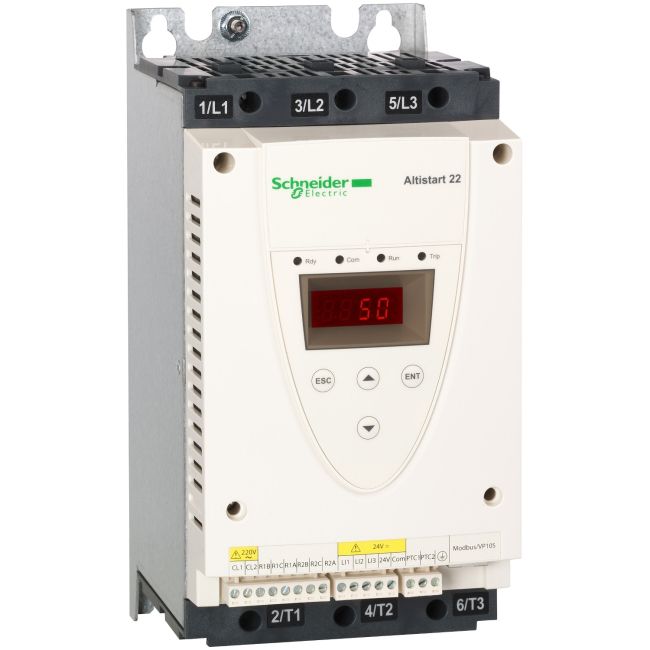

| range of product | Altistart 22 | |
|---|---|---|
| product or component type | Soft starter | |
| product destination | Asynchronous motors | |
| product specific application | Pumps and fans | |
| component name | ATS22 | |
| Phase | 3 phase | |
| [Us] rated supply voltage | 230...600 V - 15...10 % | |
| motor power kW | 11 kW 230 V 22 kW 400 V 22 kW 440 V 30 kW 500 V | |
| factory setting current | 40 A | |
| power dissipation in W | 48 W for standard applications | |
| utilisation category | AC-53A | |
| type of start | Start with torque control (current limited to 3.5 In) | |
| IcL starter rating | 47 A connection in the motor supply line for standard applications | |
| IP degree of protection | IP20 |
| assembly style | With heat sink | |
|---|---|---|
| function available | Internal bypass | |
| supply voltage limits | 195…660 V | |
| supply frequency | 50...60 Hz - 10...10 % | |
| network frequency | 45...66 Hz | |
| device connection | In the motor supply line | |
| [Uc] control circuit voltage | 230 V - 15...10 % 50/60 Hz | |
| control circuit consumption | 20 W | |
| discrete output number | 2 | |
| discrete output type | Relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O Relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O | |
| minimum switching current | 100 mA 12 V DC relay outputs) | |
| maximum switching current | 5 A 250 V AC resistive 1 relay outputs 5 A 30 V DC resistive 1 relay outputs 2 A 250 V AC inductive 0.4 20 ms relay outputs 2 A 30 V DC inductive 7 ms relay outputs | |
| discrete input number | 3 | |
| discrete input type | LI1, LI2, LI3) logic, 5 mA 4.3 kOhm | |
| discrete input voltage | 24 V <= 30 V | |
| discrete input logic | Positive logic LI1, LI2, LI3 < 5 V <= 2 mA > 11 V, >= 5 mA | |
| output current | 0.4...1 Icl adjustable | |
| PTC probe input | 750 Ohm | |
| communication port protocol | Modbus | |
| connector type | 1 RJ45 | |
| communication data link | Serial | |
| physical interface | RS485 multidrop | |
| transmission rate | 4800, 9600 or 19200 bps | |
| installed device | 31 | |
| protection type | Phase failure line Thermal protection motor Thermal protection starter | |
| marking | CE | |
| type of cooling | Forced convection | |
| operating position | Vertical +/- 10 degree | |
| height | 10.43 in (265 mm) | |
| width | 5.12 in (130 mm) | |
| depth | 6.65 in (169 mm) | |
| net weight | 15.43 lb(US) (7 kg) | |
| Motor power range AC-3 | 7…11 kW 200…240 V 3 phase 15…25 kW 380…440 V 3 phase 30…50 kW 480…500 V 3 phase | |
| motor starter type | Soft starter |
