Product Overview

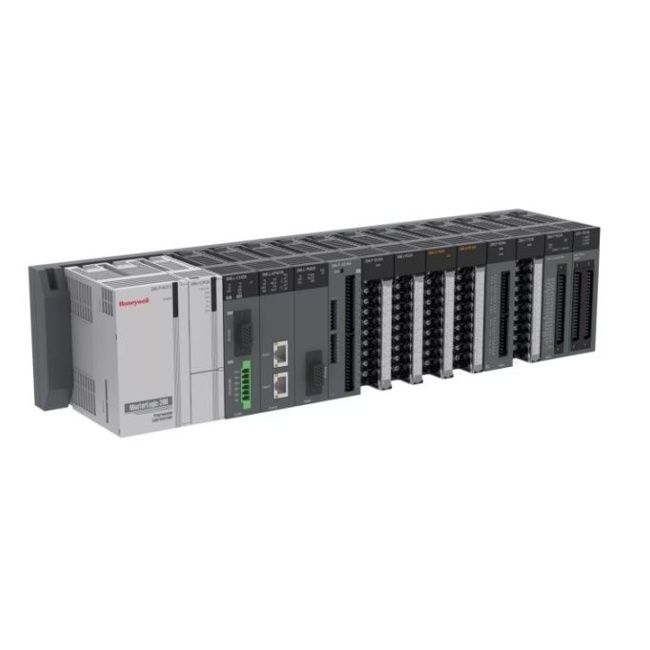

Honeywell 900G32-0301 is a 24 VDC Digital Input module for the Honeywell ControlEdge PLC platform.
The module provides 32 sinking digital inputs, separated into 2 groups of 16 channels, and is designed for reliable DC input signal acquisition in industrial control and automation systems.
This page is prepared for customers searching for Honeywell 900G32-0301, ControlEdge PLC digital input module, Honeywell 24 VDC DI module, 32-channel sinking input module, Honeywell PLC spare parts, or ControlEdge PLC I/O module quotation support.
Main Product Information
Brand: Honeywell
Model: 900G32-0301
Product Type: Digital Input 24 VDC module
PLC Platform: Honeywell ControlEdge PLC
Inputs Per Module: 32 sinking inputs
Channel Grouping: 2 groups of 16 channels
Terminal Requirement: Requires Euro style 36-terminal terminal block.
Technical Specifications
Input voltage range: 10 VDC to 32 VDC.
Peak voltage: 32 VDC.
Galvanic isolation: 2 groups of 16 inputs, 30 VDC maximum.
ON voltage level: 9.5 VDC minimum.
OFF voltage level: 3.5 VDC maximum.
Input impedance: 6.9 K ohms nominal.
Input current: 1.7 mA at 12 VDC and 3.5 mA at 24 VDC nominal.
Minimum ON current: 1.0 mA.
Maximum OFF current: 0.7 mA.
OFF to ON response time: 5 ms maximum, excluding controller scan time and transmission time from module to backplane.
ON to OFF response time: 5 ms maximum, excluding controller scan time and transmission time from module to backplane.
Operating temperature: -40 to 70°C extended operating temperature.
Storage temperature: -40 to 85°C.
Module Features
DC power applied between the common terminal and an input turns the corresponding input ON.
Each group has a pair of screw terminals for COM connection, helping simplify field wiring for grouped input signals.
A green LED state indicator is provided for each channel to show when a digital input is ON.
A green blinking status LED indicates that the module is being scanned by the controller.
A red status LED indicates when module diagnostics exist, helping maintenance staff identify module conditions quickly.
Controller logic allows the input state to be inverted when required by the application.
Application Areas
Honeywell 900G32-0301 can be used in process control, factory automation, machine monitoring, utility systems, oil and gas, chemical plants, power generation, water treatment and other industrial PLC applications.
It is suitable for customers needing Honeywell ControlEdge PLC replacement modules, project procurement, urgent spare parts, model checking, or quotation support for 900G32-0301 digital input modules.
