Product Overview

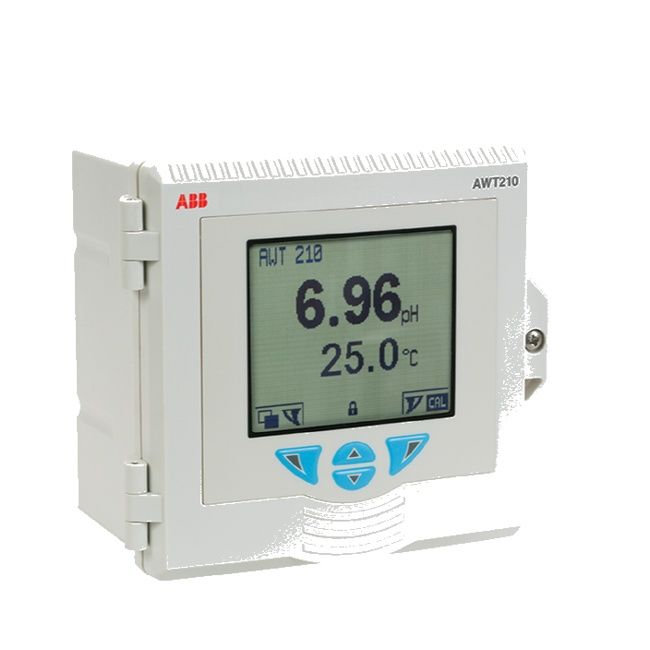

ABB AWT210 is a low-power 2-wire transmitter for conductivity, pH, ORP and pION measurement in hazardous and non-hazardous area applications.
The AWT210 transmitter is designed for process analysis applications where flexible sensor compatibility, reliable diagnostics and easy configuration are important for plant operation and maintenance.
This page is prepared for customers searching for ABB AWT210, AWT210 2-wire transmitter, ABB conductivity transmitter, pH ORP pION transmitter, ABB Measurement & Analytics transmitter, HART pH transmitter, FOUNDATION Fieldbus transmitter, PROFIBUS PA transmitter, or ABB process analyzer spare parts.
Main Product Information
Brand: ABB
Model / Series: AWT210
Product Type: 2-wire conductivity, pH/ORP and pION transmitter
Application: Liquid analysis, conductivity measurement, pH measurement, ORP measurement, pION measurement and process control.
Mounting Options: Wall mounting, panel mounting or pipe mounting.
Enclosure Options: Corrosion-resistant polycarbonate or durable aluminum enclosure depending on configuration.
Key Features
Common modular design supports analog pH, ORP, conductivity and digital EZLink pH/ORP sensors.
Plug-and-play sensor and communication modules help reduce spare stock requirements and improve transmitter flexibility.
Easy Setup menus provide step-by-step sensor configuration guidance for commissioning and routine maintenance.
Advanced self-diagnostics conforming to NAMUR NE 107 help provide clear device status indication.
One-Button sensor calibration helps save time during routine calibration work.
Intrinsically safe and non-incendive versions support hazardous area installations, depending on enclosure and approval options.
Communication And Sensor Compatibility
Communication module options include 4 to 20 mA with HART, FOUNDATION Fieldbus and PROFIBUS PA.
The AWT210 pH/ORP module is compatible with ABB analog pH, redox ORP and ion-selective pION sensors, as well as many compatible third-party sensors.
Conductivity versions support ABB 2-electrode, 4-electrode and toroidal conductivity sensors for applications from ultrapure water to harsh chemical processes.
EZLink digital pH/ORP sensor support provides plug-and-play sensor connectivity, automatic sensor recognition and predictive diagnostics when used with compatible sensors.
Technical Specifications
Display/LCD size: 75 x 65 mm.
pH measuring range: 0 to 14 pH, with over-range capability depending on configuration.
ORP and pION measuring range: -1500 to 1500 mV.
Conductivity measurement supports 2-electrode, 4-electrode and toroidal sensor configurations.
Temperature input supports Pt100, Pt1000 and 3K Balco temperature elements for automatic temperature compensation.
HART model power supply: 14 to 42 V DC for general purpose installations; 14 to 30 V DC for intrinsically safe installations.
FOUNDATION Fieldbus and PROFIBUS PA model power supply: 9 to 32 V DC for general purpose installations; 9 to 24 V DC for intrinsically safe Ex ia installations.
Ingress protection: IP66 for suitable enclosure configurations and approved installations.
Operating temperature: up to 60°C depending on enclosure, approval and installation conditions.
Approvals And Reliability
The ABB AWT210 series supports cFMus, ATEX and IECEx approval options for hazardous area applications.
SIL-approved versions are available according to IEC 61508, subject to the selected model and safety documentation.
Multilevel security access helps prevent unauthorized changes to transmitter configuration and calibration settings.
Application Areas
ABB AWT210 can be used in chemical processing, pulp and paper, mining, marine, water treatment, wastewater, power generation and general process industries.
It is suitable for customers needing ABB AWT210 replacement units, project procurement, liquid analysis transmitter spare parts, model checking, or quotation support for ABB Measurement & Analytics products.
Why Choose HONGKONG XIEYUAN TECH
HONGKONG XIEYUAN TECH CO., LIMITED supports industrial automation and process instrumentation spare parts supply, including ABB transmitters, analyzers, drives, controllers and related measurement products.
Please send the exact model number, quantity and required delivery time when making an inquiry, so we can help check availability and provide quotation support quickly.
