Product Overview

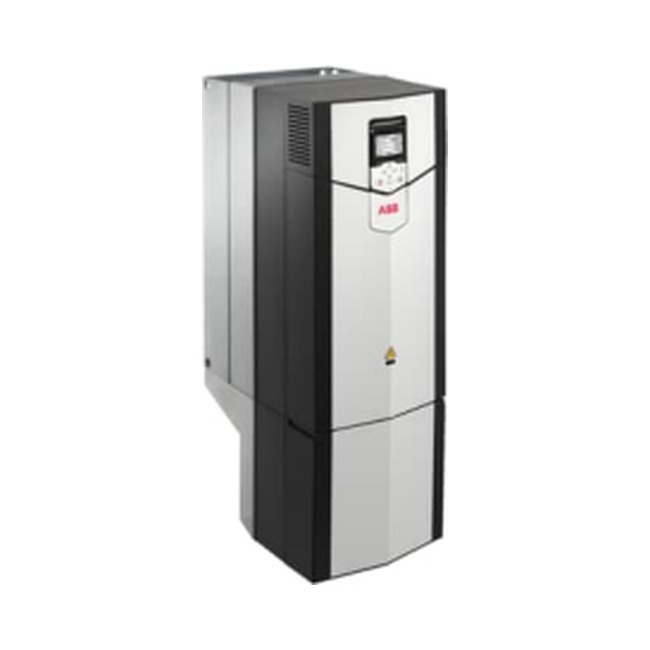

ABB ACS880-01-169A-3 is an LV AC industrial wall-mounted single drive designed for demanding motor control applications. The related ABB product ID is 3AUA0000108027, and the drive is rated for IEC Pn 90 kW, 169 A and 400 V class operation.
This ACS880-01 drive is suitable for industrial users looking for a compact ABB variable frequency drive with reliable performance, flexible communication options and easy wall-mounted installation. It is commonly used for pumps, fans, conveyors, compressors, mixers, cranes, winches, winders and other process or machinery applications.
Main Specifications
Model: ACS880-01-169A-3
Product ID: 3AUA0000108027
Brand: ABB
Product type: LV AC industrial wall-mounted single drive
Input voltage: 380 ... 415 V
Frequency: 47.5 ... 63 Hz
Number of phases: 3-phase
Frame size: R7
Output Rating
Normal use output current is 169 A with 90 kW output power. Light-overload output current is 161 A with 90 kW output power, while heavy-duty output current is 145 A with 75 kW output power.
The apparent power output is listed as 117 kVA. The drive has IE2 efficiency level information in the technical data and is designed for efficient control of AC motors in continuous industrial service.
Communication and I/O
The ACS880-01-169A-3 supports industrial communication options including CAN, DeviceNet, EtherNet/IP, Modbus, PROFIBUS, PROFINET IO, PROFIsafe and other bus systems. The technical data also lists RS-485 and USB interfaces, with PC connection and control unit included.
The drive includes 2 analog inputs, 2 analog outputs and 6 / 2 digital inputs and outputs, helping users integrate the unit into automation panels, control systems and industrial drive cabinets.
Installation and Mechanical Data
The ACS880-01-169A-3 is a wall-mounted drive with IP21 degree of protection and NEMA Type 1 enclosure. Product net dimensions are approximately 284 mm width, 880 mm height and 365 mm depth / length, with a net weight of about 53.0 kg.
Operating conditions include altitude up to 4000 m, ambient humidity range of 5 ... 95 % RH and maximum temperature rating of 40 deg C. The listed sound level is 67 dB(A).
Typical Applications
ABB ACS880 industrial drives are used across oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, marine, water and wastewater, food and beverage and automotive industries.
This model is a practical choice when customers need an ABB ACS880-01 90 kW drive, ABB 169 A AC drive, ACS880-01-169A-3 inverter, or replacement unit under ABB product ID 3AUA0000108027.
