MOXA EDS-205A-S-SC Unmanaged Ethernet Switch with 4 10/100 BaseT(X) Ports

MOXA EDS-205A-S-SC Unmanaged Ethernet Switch with 4 10/100 BaseT(X) Ports

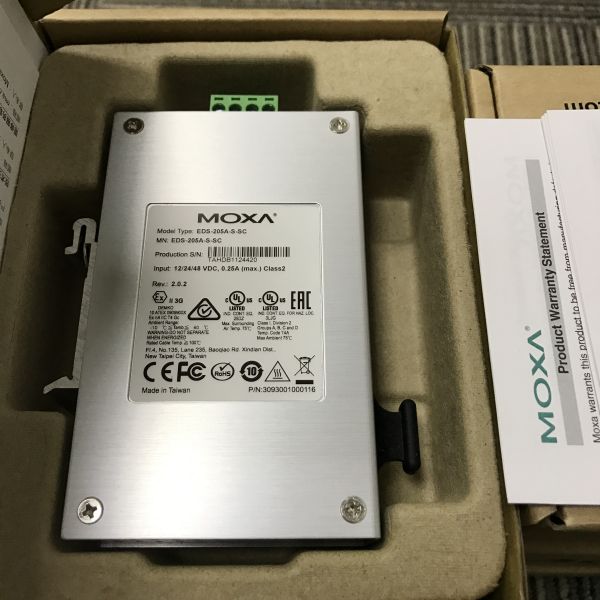

Model: EDS-205A-S-SC

Supplier: Products

Categories: MOXA

Please contact us for more information.

PRODUCT DESCRIPTION

MOXA EDS-205A-S-SC Unmanaged Ethernet Switch with 4 10/100 BaseT(X) Ports


MOXA EDS-205A-S-SC Switch


Unmanaged Switches

Moxa has a large portfolio of industrial unmanaged switches that have been specifically designed for industrial Ethernet infrastructure. Our unmanaged Ethernet switches uphold the stringent standards that are required for operational reliability in harsh environments.



EDS-205A-S-SC

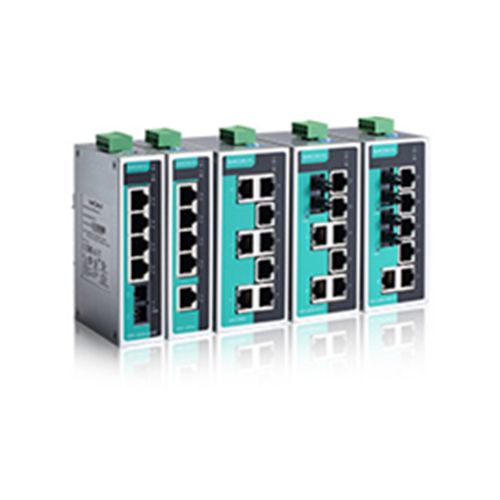

EDS-205A Series

Unmanaged Ethernet switch with 4 10/100BaseT(X) ports, and 1 100BaseFX single-mode port with SC connector, -10 to 60°C operating temperature



Ethernet Interface
  • 10/100BaseT(X) Ports (RJ45 connector)

    • 4
      Auto negotiation speed
      Full/Half duplex mode
      Auto MDI/MDI-X connection

  • 100BaseFX Ports (single-mode SC connector)

    • 1

  • Standards

    • IEEE 802.3 for 10BaseT
      IEEE 802.3u for 100BaseT(X) and 100BaseFX
      IEEE 802.3x for flow control

  • Optical Fiber

    • Read more

Switch Properties
  • MAC Table Size

    • 1 K

  • Packet Buffer Size

    • 384 kbits

  • Processing Type

    • Store and Forward

Power Parameters
  • Connection

    • 1 removable 4-contact terminal block(s)

  • Input Current

    • 0.1 A @ 24 VDC

  • Input Voltage

    • 12/24/48 VDC, Redundant dual inputs

  • Operating Voltage

    • 9.6 to 60 VDC

  • Overload Current Protection

    • Supported

  • Reverse Polarity Protection

    • Supported

DIP Switch Configuration
  • Ethernet Interface

    • Broadcast storm protection

Physical Characteristics
  • Housing

    • Aluminum

  • IP Rating

    • IP30

  • Dimensions

    • 30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in)

  • Weight

    • 175 g (0.39 lb)

  • Installation

    • DIN-rail mounting, Wall mounting (with optional kit)

Environmental Limits
  • Operating Temperature

    • -10 to 60°C (14 to 140°F)

  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)

Standards and Certifications
  • EMC

    • EN 55032/24

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 10 V
      IEC 61000-4-8 PFMF

  • Hazardous Locations

    • IECEx, ATEX, Class I Division 2

  • Maritime

    • ABS, DNV-GL, LR, NK

  • Railway

    • EN 50121-4

  • Safety

    • UL 508

  • Shock

    • IEC 60068-2-27

  • Traffic Control

    • NEMA TS2

  • Vibration

    • IEC 60068-2-6

  • Freefall

    • IEC 60068-2-31

MTBF
  • Time

    • 3,040,784 hrs

  • Standards

    • Telcordia (Bellcore), GB

Warranty
  • Warranty Period

    • 5 years





We promise 100% original brand new with 1-year warranty.

If you are interested in our products, please feel free to contact us!

-----------------------------------------------------------
