Yokogawa RAMC23 ROTAMETER RAMC Variable Area Flow Meter, Size DN20

Yokogawa RAMC23 ROTAMETER RAMC Variable Area Flow Meter, Size DN20

Model: RAMC23

Supplier: Yokogawa

Categories: Field Instruments

Please contact us for more information.

PRODUCT DESCRIPTION

We promise 100% original brand new with 1-year warranty.

If you are interested in our products, please feel free to contact us!

-----------------------------------------------------------

HONGKONG XIEYUAN TECH CO., LIMITED

Add: 7-A16,Caishen Commercial Plaza,Hankou Railway Station,Wuhan, China

Contact: Ms. Lily

Email: lily@hkxytech.com

WhatsApp/Skype: +86 13789949182

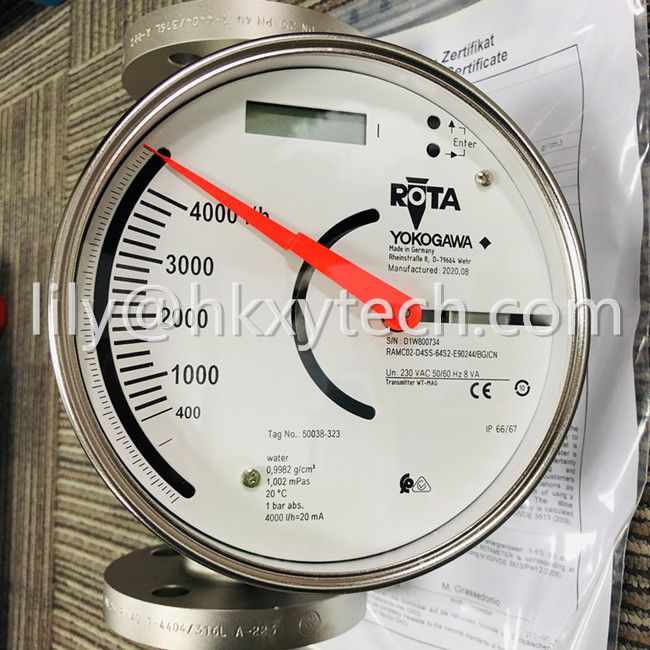

Yokogawa-RAMC02-flowmeter



At first glance, the instrument looks impressive with its all stainless steel design. A closer look reveals a "float blockage" detection system. Operational safety is of the utmost importance in any flowmeter, and the RAMC is no exception – wetted parts are available in a variety of materials, and intrinsically safe outputs are available as an option.


If you value flexibility in a flowmeter – from the measurement of air to highly aggressive liquids – in situ replacement of the indicator without loss of performance – and the interchangeability of floats – then the RAMC is the right choice for you.


The RAMC combines all the advantages of the variable area principle with robust design, reliable measurement, with or without power, HART, culminating in a truly universal flowmeter for gases, liquids and steam applications.

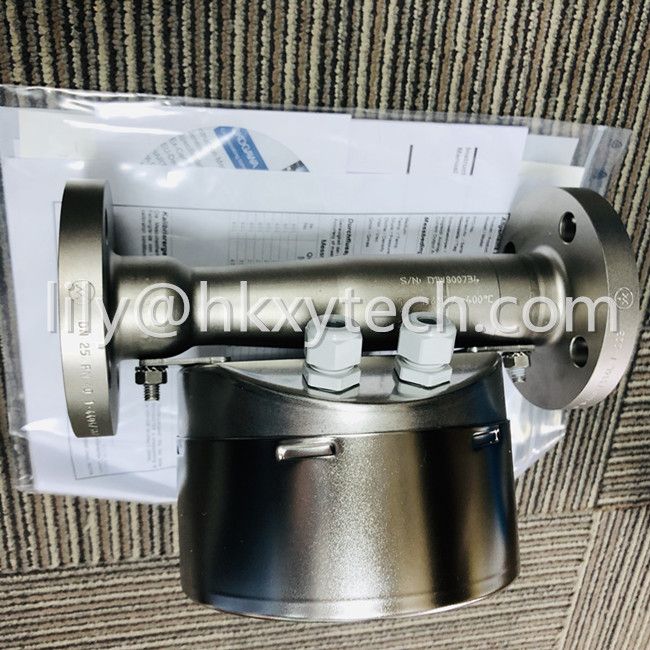

The short-tube Rotameter is used for measurement of flow rates of liquids and gases. Its special application is in turbulent, opaque or aggressive fluids. The instrument is mounted in a vertical pipeline with flow direction upwards. Inside the special shaped conical metal tube, a float is guided concentrically. The position of this float is magnetically transmitted to the indicator.




FEATURES

• Simple and low-cost installation, very robust and long- lasting device

• Energy efficient due to mechanical indication without

power supply and very low pressure loss

• All common process connections available

• All wetted parts in stainless steel or PTFE

• Flow range water: 0.0025 to 130 m³/h (0.66 to 34342 gph)

• Flow range air: 0.075 to 1400 m³/h (2.65 to 49440 scfh) at 20 °C, 1 bar abs (68 °F, 14.5 psi)

• Measuring accuracy ±1.6 % acc. standard VDI/VDE 3513 sheet 2 (qG = 50 %)

• Float damping to avoid float bouncing with gas applica- tions

• Optional heat tracing (with steam or fluid heat carrier)

• Indicator in stainless steel or aluminum, protection class IP66/67

• Microprocessor controlled transmitter with 24 V, 115 V

or 230 V power supply

• Suitable for hazardous area applications

• FMEDA report available for SIL application

• Limit switches, also available as “fail-safe” version

• Electronic transmitter as standard with digital display


with the following features:

♦ Flow indication (totalizer, actual, percent)

♦ Indication of different volume- and mass flow units

♦ Possibility of user calibration in the field

♦ Float blocking indication function

♦ Adjustable signal output damping

♦ Error message indication

♦ Temperature measurement in the electronic transmitter

♦ HART 5/7- or Profibus PA- Communication




RAMC01

RAMC23

RAMC02

RAMC03

RAMC04

RAMC05

RAMC06

RAMC08

RAMC09

RAMC10

RAMC12

RAMC15

RAMCNN
