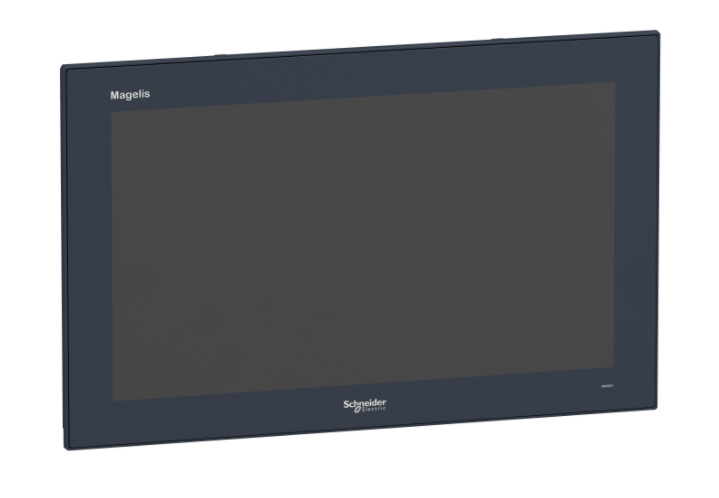

Schneider HMIDM7421 Flat Screen, Harmony Modular iPC, Display PC 4:3 15" Single Touch for HMIBM

Schneider HMIDM7421 Flat Screen, Harmony Modular iPC, Display PC 4:3 15" Single Touch for HMIBM

Model: HMIDM7421

Supplier: Schneider

Categories: Human Machine Interfaces

Please contact us for more information.

PRODUCT DESCRIPTION




Harmony iPC

Industrial PC, Edge Box and Display - formerly known as Magelis iPC Part of Harmony


Harmony iPCs and Edge Box run at the Edge Control level of Ecostruxure, the Schneider Electric IIoT architecture. They enable secured communication from shop floor to IT, improving profitability and offering new business opportunities through enhanced asset performance for more efficient operation and maintenance of capital assets. They offer smart application design and engineering to leverage asset performance, with end-to-end cybersecurity.



Features


Harmony iPC and Edge Box provides solutions to IIoT and automation applications that need to run on Windows or Linux operating systems in industrial environments. They are a comprehensive range of intuitive Harmony Edge Box and industrial PCs for improved productivity to enhance operator experience:


  • Harmony Edge Box HMIBSC/HMIBMI/HMIBMO can be used for IIoT at the edge of EcoStruxure for direct connection to Cloud applications (running Node-RED to wire from OT to IT) with enhanced cybersecurity by design.

  • Harmony HMIBM Modular Box PC cater to some of the most demanding field applications running on a Windows operating system platform. They make the complete Panel PC when mounted with Harmony HMIDM Modular Displays. Depending on the model, they are conformal coated, and cULus certified for industrial control, hazardous location and marine. They can run also Trusted Platform Module (TPM) for cybersecured hardware encryption.

  • Harmony HMIDM Modular Displays are the companion of Harmony HMIBM Modular Box PCs. They can be directly mounted on to the Box PC or remotely via cables. They afford 4:3 resistive format for use with heavy gloves and Wide multi-touch format to navigate as a smart phone or tablet. With Harmony HMIDAD Display Adapter, the Harmony Modular Display can be used as remote display with cables up to 5m, or in daisy chain configuration of up to 4 screens and over a distance of 100m each.

  • Harmony HMIDID iDisplays are robust monitors with an excellent screen size/dimensions ratio and can be used in conjunction with industrial PCs.

  • Harmony HMIPS S-Panel PCs are simple and compact all-in-one hardware.

  • Harmony HMIR Rack PCs to run in control rooms, offer a one-stop shop for a complete plant solution.




Specifications
Main
range of productHarmony Modular iPC
Product or component typeFlat screen
terminal typeTouchscreen display
Complementary
device mountingFlush
local signallingStatus LED
view angle horizontal x vertical150 x 140°
Contrast ratio500:01:00
pixel resolution1366 x 768
touchscreen resolution4096 x 4096
Function availableOperate with water on screen
[Us] rated supply voltage24 V DC power supply
100...240 V AC power supply 47...63 Hz
supply voltage limits18…36 V DC
Power consumption in W48.1 W (typical) with Box PC HMIBMP
63.28 W (maximum) with Box PC HMIBMP
43.1 W (typical) with Box PC HMIBMU
58.28 W (maximum) with Box PC HMIBMU
Display size18.5 inch
display typeColour TFT LCD
LED
Display resolution1366 x 768 pixels WHD FWXGA
display colour16777216 colors
luminance300 cd/m²
backlight lifespan50000 hours at 25 °C
touch panelMulti-touch projected capactive technology (PCT)
Type of installationIndoor installation
inrush current8.9 A
Width488.3 mm
Height309 mm
depth28 mm enclosure:
7 mm
Net weight5.2 kg



Order Number:

HMIDM7421

HMIDM7521

HMIDM9521

HMIDMA521

HMIDM6421

HMIDM6521


HMIBSCEA53D1L01

HMIBMOMA5DDF10L

HMIBMOMA5DD1E01

HMIBMOMA5DD1101

HMIBMO0A5DDF10A

HMIBMO0A5DDF101

HMIBMO0A5DD1001

HMIBMIEA5DD1E01

HMIBMIEA5DD110L

HMIBMIEA5DD1101

HMIBMIEA5DD100A

HMIBMIEA5DD1001

HMIBSCEA53D1L0T

HMIBSCEA53D1L0A



---------------------------
