Sealweld ACTIV-8® is the favorite pump of professional valve technicians. The ACTIV-8® is capable of drawing product directly from a 10 pound can and is capable of running on compressed air, bottled air or natural gas in an emergency.
Generates up to 10,000 PSI injection pressure when required
Controls the quantity of lubricant/sealant being injected; prevents over-lubrication
Rugged steel frame and pneumatic tires make this pump ideal for field and plant work
Air/hydraulic motor is powered by compressed air, bottled air or natural gas
Simple design makes field repairs quick and easy
Delivers lubricant/sealant at up to 1 pound every 70 seconds
High speed action cuts valve maintenance time by up to 75% on large diameter valves and at facilities with many valves
Patented ACTIV-8® delivers valve cleaners, lubricants and sealants faster than any other pump on two wheels
High-speed action and 10 pound (5 quart) capacity makes this pump ideal for pipelines and large plants
Complete with 10 foot sealant hose, swivels and coupler. 15,000 PSI gauge and guard is also standard equipment. Longer hoses are available on request
Built-in air filter/lubricator system
Each pump comes complete with an owner's manual and an 8 minute DVD describing safe operating procedures

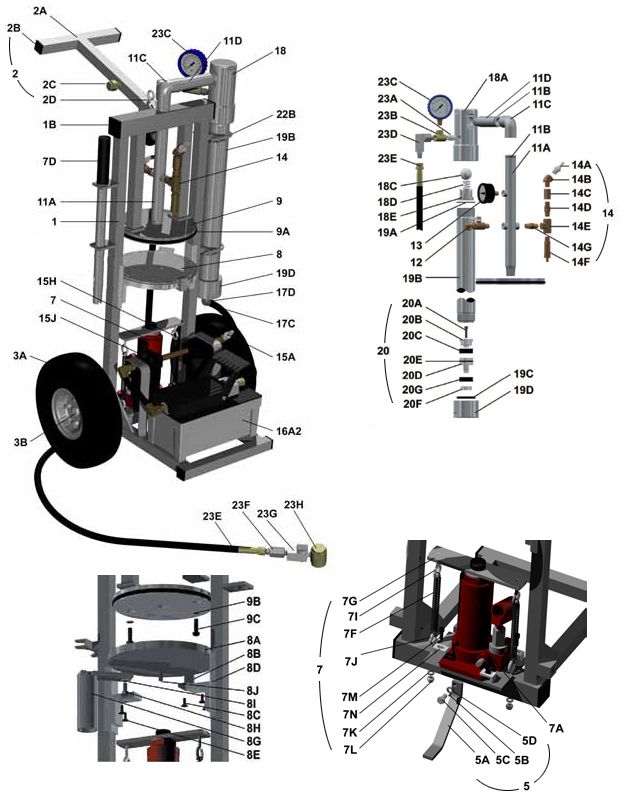

| ILLUSTRATION # | DESCRIPTION | ORDER PART # | QTY. REQ'D |
| 1 | ACTIV-8® Frame (bare) | R-A8-01 | 1 |
| 1B | 1-1/2" Frame Plugs | R-A8-01B | 4 |
| 2 | T-Handle Assembly | R-A8-02 | |
| 2A | T-Handle (bare) | R-A8-02A | 1 |
| 2B | 1" Frame Plugs | R-A8-02B | 4 |
| 2C | Capped Sealant Fitting 1/4" Carbon Steel | F-SC1/4-BH-CS | 1 |
| 2D | T-Handle Large Eye Hook | R-A8-53 | 1 |
| Washer - 1/4" | R-A8-32 | 1 | |
| 1/4" Nylock Lock Nut | R-A8-33 | 1 | |
| 3A | Pneumatic Wheel | R-A8-03P1 | 2 |
| 3B | 1/2" x 3-1/4" New Style Axle | R-A8-03P5 | 2 |
| 5 | Kick Stand Assembly | R-A8-05 | |
| 5A | Kick Stand | R-A8-05A | 1 |
| 5B | Kick Stand Set Screw | R-A8-05B | 1 |
| 5C | Kick Stand Bolt | R-A8-34 | 1 |
| 5D | Washer - 1/4" | R-A8-32 | 2 |
| 1/4" Nylock Lock Nut | R-A8-33 | 1 | |
| 7 | Jack Assembly | R-A8-07 | |
| 7A | Jack | R-A8-07A | 1 |
| Jack Collar | R-A8-07AC | 1 | |
| Jack Handle with Grip Assembly | R-A8-07B | 1 | |
| 7D | Jack Handle with Grip | R-A8-07B2 | 1 |
| Washer - 1/4" | R-A8-32 | 1 | |
| 7F | Jack Pull-Down Springs | R-A8-07C | 2 |
| 7G | Jack Pull-Down Bar | R-A8-07D | 1 |
| 7I | Upper Eye Bolts | R-A8-29 | 2 |
| 7J | Lower Eye Bolts | R-A8-30 | 2 |
| 7K | Washer - 1/4" | R-A8-32 | 2 |
| 7L | 1/4" Nylock Lock Nut | R-A8-33 | 2 |
| 7M | Jack Bracket Bolts | R-A8-50A | 4 |
| 7N | Jack Bracket | R-A8-50B | 4 |
| 8 | Elevator Plate Assembly | R-A8-08 | |
| 8A | Elevator Plate | R-A8-08A | 1 |
| 8B | Elevator Plate Back-Stop | R-A8-08B | 1 |
| 8C | Back Stop Bolt | R-A8-37 | 1 |
| 8D | Slide Rails | R-A8-08C | 2 |
| 8E | Slide Rail Screw | R-A8-52 | 4 |
| Jack Extension Assembly | R-A8-08D | ||
| 8G | Swing Bar | R-A8-08D1 | 1 |
| Dowel Pin - 1/8" x 1/2" | R-A8-08E | 1 | |
| 8H | Swing Bar Bolt - 5/16" | R-A8-39 | 1 |
| 8I | Washer - 1/4" | R-A8-32 | 1 |
| 8J | Swing Bar Stop Bolt | R-A8-39A | 1 |
| 9 | Loading Plate | R-A8-09 | 1 |
| 9A | Loading Plate O-Ring - Nitrile | R-A8-09A | 1 |
| 9B | Bonded Seal - 5/16" | R-A8-09D | 2 |
| 9C | Loading Plate Cap Screws – 5/16" x 1" | R-A8-09C | 2 |
| 11A | Lower Loading Tube | R-A8-11A | 1 |
| 11B | Loading Tube O-Rings - Nitrile | R-A8-11B | 2 |
| 11C | Loading Tube Elbow | R-A8-11C | 1 |
| 11D | Upper Loading Tube | R-A8-11D | 1 |
| 12 | Vent Valve Assembly | R-A8-12A | 1 |
| 13 | Loading Tube Gauge – 200 PSI | R-A8-13 | 1 |
| 14 | Blow Down Assembly | R-A8-14 | |
| 14A | Modified Air Nipple | R-A8-14A | 1 |
| 14B | Elbow – 45 Degree – LP – M x F | R-A8-14B | 1 |
| 14C | Collar - Low Pressure - F x F | R-A8-14C | 1 |
| 14D | Check Valve | R-A8-14D | 1 |
| 14E | Low Pressure Tee | R-A8-14E | 1 |
| 14F | Relief Valve - 200 PSI | R-A8-14F | 1 |
| 14G | Low Pressure Nipple – 1/4" | R-A8-14G | 1 |
| Quick Coupler | R-A8-14H | 1 | |
| Filter/Lubricator Assembly | R-A8-15 | ||
| 15A | Air Nipple | R-A8-15A | 1 |
| Air Swivel Elbow | R-A8-15F3 | 1 | |
| Low Pressure Hose | R-A8-15F4 | 1 | |
| Elbow – 90 Degree – LP – F x F | R-A8-15F7 | 2 | |
| Pipe Nipple – LP – 3" – 1/4" NPT | R-A8-15F8 | 1 | |
| Pipe Nipple – LP – 2" – 1/4" NPT | R-A8-15F9 | 2 | |
| Pipe Bracket Screws | R-A8-15G | 4 | |
| Pipe Bracket Nylock Lock Nuts | R-A8-15G2 | 4 | |
| Lubricator/Filter Pipe Brackets | R-A8-15G3 | 2 | |
| 15H | Large Air Filter Unit | R-A8-15H | 1 |
| 15J | Large Lubricator– 1/4" | R-A8-15J | 1 |
| Lubricator/Filter Bracket Set | R-A8-15K | 1 | |
| 16A2 | Air / Hydraulic Motor – OTC Pump | R-A8-16A2 | 1 |
| Bolts for Metal Pump Box | R-A8-31 | 4 | |
| Washers - 1/4" | R-A8-32 | 4 | |
| 17C | OTC Hydraulic Hose | R-A8-17C | 1 |
| 17D | Elbow – 90 Degree 1/4" M x 1/4" F | R-A8-17D | 1 |
| 18 | Head Assembly | R-A8-18 | |
| 18A | Head - Bare | R-A8-18A | 1 |
| 18C | Steel Flag Ball for Head – 1-1/4" | R-A8-18C | 1 |
| 18D | Spring for Head | R-A8-18D | 1 |
| 18E | Flow Wolf Cage for Head | R-A8-18E | 1 |
| Sealant Barrel Assembly | R-A8-19 | ||
| 19A | Barrel Gasket | R-A8-19A | 1 |
| 19B | Sealant Barrel | R-A8-19B | 1 |
| 19C | Barrel O-Ring - Nitrile | R-A8-19C | 1 |
| 19D | Barrel End Cap | R-A8-19D | 1 |
| 20 | Piston Assembly | R-A8-20 | |
| 20A | Piston Screw | R-A8-20A | 1 |
| 20B | Piston Stop | R-A8-20B | 1 |
| 20C | Nylon Piston Cup | R-A8-20C | 1 |
| 20D | Piston Body | R-A8-20D | 1 |
| 20E | Piston O-Ring | R-A8-20E | 1 |
| 20F | Piston End Nut | R-A8-20F | 1 |
| 20G | Leather Piston Cup | R-HG-08H | 1 |
| Head and Barrel Assembly | R-A8-21 | ||
| 22B | "U" Bolts | R-A8-22B | 2 |
| Washers - 1/4" | R-A8-32 | 4 | |
| 3/8" – "U" Bolt - Nylock Nuts | R-A8-45 | 4 | |
| High-Pressure Hose Assembly | H-A-HOSE | ||
| 23A | Adapter – 1/4" M x 1/4" M | H-AD-4M4M | 1 |
| 23B | High-Pressure Tee – 1/4" F x 1/4" F | H-T-444 | 1 |
| 23C | HP Gauge Assembly - 15,000 PSI | H-GD-01C | 1 |
| 23D | "L" Swivel – 1/4" M x 1/2" – 27M | H-SV-L1 | 1 |
| 23E | HP 10 foot Hose – 3/8" – 10,000 PSI | H-HS-120HP | 1 |
| 23F | Straight Swivel 1/4" M x 1/4" – 27 M | H-SV-ST1 | 1 |
| 23G | Release Valve 1/4" M x 1/4" F | H-RVAB | 1 |
| 23H | Sealweld Giant Buttonhead Coupler | H-CPSG-2 | 1 |
| Pail Guard | R-A8-24 | 1 | |
| Pail Guard Wing Nuts - 5/16" | R-A8-48 | 2 | |
| Minor Repair Kit | R-A8-25 |
