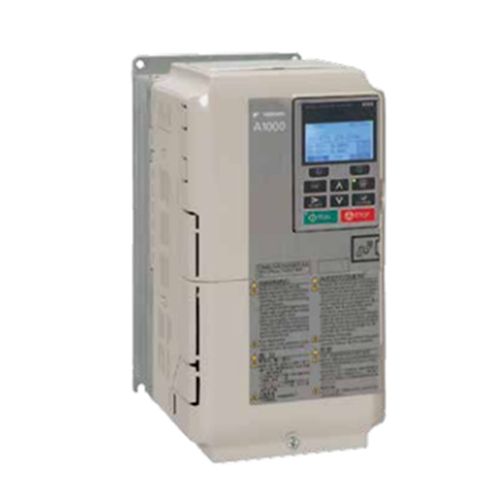

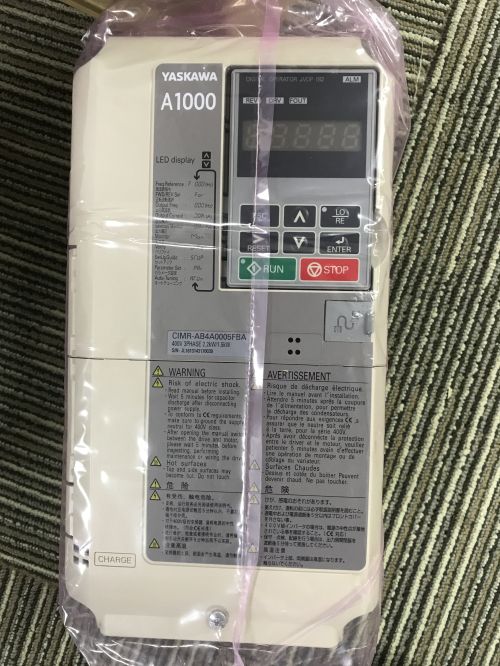

YASKAWA A1000 Variable Frequency Drives CIMR-AB4A0005FBA Inverter 3 PHASE 400V 2.2KW

YASKAWA A1000 Variable Frequency Drives CIMR-AB4A0005FBA Inverter 3 PHASE 400V 2.2KW

Model: CIMR-AB4A0005FBA

Supplier: Products

Categories: Yaskawa

Please contact us for more information.

PRODUCT DESCRIPTION

YASKAWA A1000 Variable Frequency Drives CIMR-AB4A0005FBA Inverter 3 PHASE 400V 2.2KW


YASKAWA-A1000-INVERTER

YASKAWA-INVERTER


The A1000 is a full featured drive, providing outstanding quality, performance, flexibility, and environmental friendliness through 1000HP. Enjoy network communications, feedback, and expandable I/O to control anything from simple fans and pumps to complex machines. For new installations or retrofits, the A1000 provides a single robust solution, regardless of your application.





Highlights:


  • Closed or open loop vector control for outstanding regulation, torque production, and position control capability.

  • Continuous Auto-tuning optimizes performance by compensating for changes in motor temperature.

  • High Frequency Injection enables high precision open loop control of Interior Permanent Magnet Motors.

  • Fast acting current and voltage limiters help achieve continuous drive operation during periods of excessive demand.

  • High Slip Braking reduces installation cost and the need for dynamic braking resistors

  • Communication options for all major industrial networks provides high speed control and monitoring, reducing installation cost.

  • DriveWizard computer software and Application Sets for easy configuration.

  • Auxiliary Control Power Unit maximizes production time and efficiency by maintaining network communication while main power is removed.

  • Embedded Safe Torque Off minimizes downtime for applications requiring occasional intervention (SIL CL2, PLd, Category 3).

  • Embedded function blocks, programmable with DriveWorks EZ, provide additional application flexibility and the opportunity to eliminate separate controllers.

  • USB Copy Unit and Keypad configuration storage provide speed and convenience for duplicate configuration of multiple drives.

  • Removable terminal board with configuration storage provides convenience of configuration backup.

  • Made with RoHS compliant materials.

  • Integrated DC Reactor (standard on 30HP and larger) for input harmonic reduction.

  • Kinetic Energy Braking allows drive to remain in control during momentary power losses.

  • Integrated 12 Pulse version provides a cost effective solution for low harmonics.

  • Flange version provides NEMA 12 backside integrity when mounting with heatsink external.





A1000 Series

CIMR-AB4A0002FBA 3 Phases 400V 0.75KW

CIMR-AB4A0004FBA 3 Phases 400V 1.5KW

CIMR-AB4A0005FBA 3 Phases 400V 2.2KW

CIMR-AB4A0007FBA 3 Phases 400V 3KW

CIMR-AB4A0009FBA 3 Phases 400V 3.7KW

CIMR-AB4A0011FBA 3 Phases 400V 5.5KW

CIMR-AB4A0018FBA 3 Phases 400V 7.5KW

CIMR-AB4A0023FBA 3 Phases 400V 11KW

CIMR-AB4A0031FBA 3 Phases 400V 15KW

CIMR-AB4A0038FBA 3 Phases 400V 18.5KW

CIMR-AB4A0044FBA 3 Phases 400V 22KW

CIMR-AB4A0058ABA 3 Phases 400V 30KW

CIMR-AB4A0072ABA 3 Phases 400V 37KW

CIMR-AB4A0088ABA 3 Phases 400V 45KW

CIMR-AB4A0103ABA 3 Phases 400V 55KW

CIMR-AB4A0139ABA 3 Phases 400V 75KW

CIMR-AB4A0165ABA 3 Phases 400V 90KW

CIMR-AB4A0208ABA 3 Phases 400V 110KW

CIMR-AB4A0250ABA 3 Phases 400V 132KW

CIMR-AB4A0296ABA 3 Phases 400V 160KW

CIMR-AB4A0362ABA 3 Phases 400V 185KW

CIMR-AB4A0414ABA 3 Phases 400V 220KW

CIMR-AB4A0515ABA 3 Phases 400V 315KW

CIMR-AB4A0675ABA 3 Phases 400V 355KW



CIMR-AB2A0004FAA 3 Phases 200V 0.4KW

CIMR-AB2A0006FAA 3 Phases 200V 0.75KW

CIMR-AB2A0008FAA 3 Phases 200V 1.1KW

CIMR-AB2A0010FAA 3 Phases 200V 1.5KW

CIMR-AB2A0012FAA 3 Phases 200V 2.2KW

CIMR-AB2A0018FAA 3 Phases 200V 3KW

CIMR-AB2A0021FAA 3 Phases 200V 3.7KW

CIMR-AB2A0030FAA 3 Phases 200V 5.5KW

CIMR-AB2A0040FAA 3 Phases 200V 7.5KW

CIMR-AB2A0056FAA 3 Phases 200V 11KW

CIMR-AB2A0069FAA 3 Phases 200V 15KW

CIMR-AB2A0081FAA 3 Phases 200V 18.5KW

CIMR-AB2A0110AAA 3 Phases 200V 22KW

CIMR-AB2A0138AAA 3 Phases 200V 30KW

CIMR-AB2A0169AAA 3 Phases 200V 37KW

CIMR-AB2A0211AAA 3 Phases 200V 45KW

CIMR-AB2A0250AAA 3 Phases 200V 55KW

CIMR-AB2A0312AAA 3 Phases 200V 75KW

CIMR-AB2A0360AAA 3 Phases 200V 90KW

CIMR-AB2A0415AAA 3 Phases 200V 110KW
