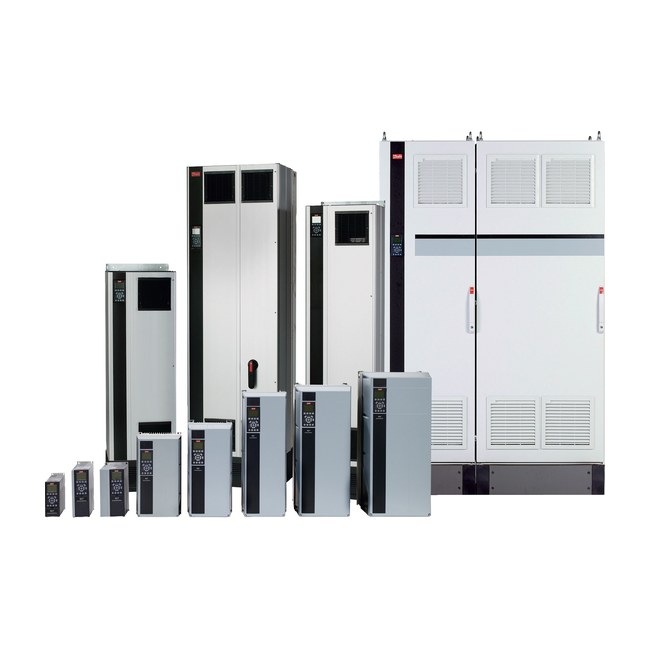

Danfoss FC-302P11KT5E20H1XGXXXXSXXXXAXBXCXXXXDX is a VLT AutomationDrive FC-302 frequency converter for low-voltage drive applications. It is designed for industrial motor control where reliable operation, flexible configuration and stable performance are required.
Product Overview
This model belongs to the Danfoss VLT AutomationDrive FC 300 series. The official product code is 131B9826, with a configured model code of FC-302P11KT5E20H1XGXXXXSXXXXAXBXCXXXXDX.
Main Features
- VLT AutomationDrive FC-302 frequency converter
- Power rating: 11 kW / 15 HP
- Three phase input, 380 - 500 VAC
- IP20 / Chassis enclosure
- RFI Class A1/B (C1) filter
- Graphical local control panel
- Frame size: B3
Key Specifications
| Brand | Danfoss |
| Series | VLT AutomationDrive FC-302 |
| Model | FC-302P11KT5E20H1XGXXXXSXXXXAXBXCXXXXDX |
| Product Code | 131B9826 |
| Power Rating | 11 kW / 15 HP |
| Mains Voltage | 380 - 500 VAC |
| Phase | Three phase |
| Enclosure | IP20 / Chassis |
| RFI Filter | RFI Class A1/B (C1) |
| Continuous Current | HO: 24 A / 21 A; NO: 27 A / 32 A |
| Dimensions | 399 mm height, 165 mm width, 249 mm depth |
| Net Weight | 10.97 kg |
Application
The Danfoss FC-302 series is widely used in automation systems, industrial machinery, pumps, fans, conveyors and process control applications. This configuration is suitable for customers looking for a Danfoss low-voltage drive with stable performance and a compact chassis design.
