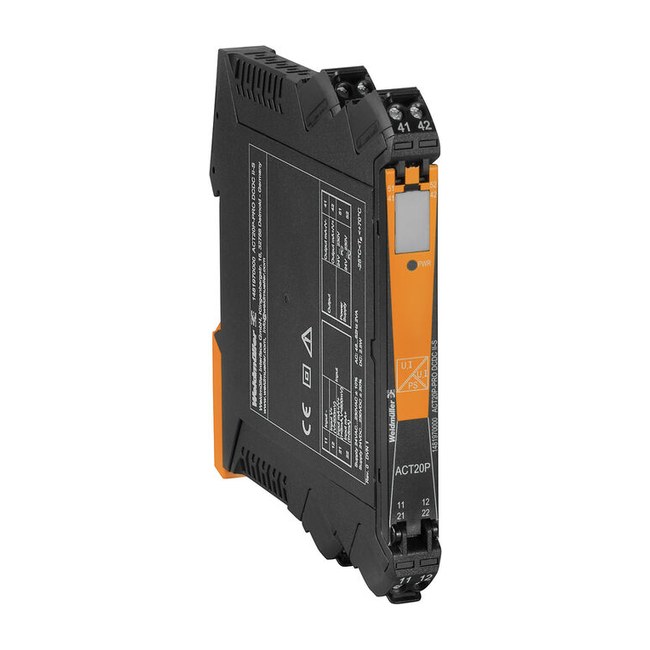

Weidmuller ACT20P-PRO DCDC II-S is a flexible analogue isolating amplifier for industrial signal conversion and galvanic isolation. The order number is 1481970000, designed for universal current or voltage input and universal current or voltage output.
Product Overview
The ACT20P-PRO DCDC II-S isolates and converts analogue signals in automation and process control systems. It converts an analogue input signal linearly into an analogue output signal and provides 3-way galvanic isolation between input, output and power supply.
This model supports a wide-range power supply of 24 to 230 V AC/DC and can be configured by DIP switch or through the front display and push buttons, making it suitable for different field signal requirements.
Main Features
- Universal analogue isolating amplifier for current and voltage signals
- Input: selectable current or voltage input
- Output: selectable current or voltage output
- 3-way galvanic isolation between input, output and supply
- Wide-range 24 to 230 V AC/DC power supply
- Configurable by DIP switch or front display with push buttons
- Fast step response time and high signal accuracy
- Compact 12.5 mm housing for TS 35 DIN rail mounting
Key Specifications
| Brand | Weidmuller |
| Type | ACT20P-PRO DCDC II-S |
| Order No. | 1481970000 |
| Product Type | Analogue isolating amplifier |
| Input Signal | Current or voltage input, selectable |
| Input Voltage Range | Configurable, +/-40 mV to +/-300 V |
| Input Current Range | Configurable, +/-0.1 mA to +/-100 mA |
| Output Voltage | Adjustable, 0 to +/-10 V |
| Output Current | Configurable, 0 to +/-20 mA |
| Supply Voltage | 24 to 230 V DC +/-20%; 24 to 230 V AC +/-10%, 48 to 62 Hz |
| Accuracy | < 0.05% of measuring range |
| Step Response Time | <= 50 us |
| Protection Degree | IP20 |
| Operating Temperature | -20 C to +60 C |
| Dimensions | 119.2 mm height, 12.5 mm width, 113.7 mm depth |
| Mounting | TS 35 DIN rail |
Industrial Application
Weidmuller ACT20P-PRO DCDC II-S is suitable for signal conditioning, process measurement, PLC input and output isolation, current or voltage conversion, and automation systems that require reliable electrical isolation between field devices and control equipment.
Its compact housing, universal configuration and wide power supply range make it a practical choice for control cabinets, process plants, factory automation and retrofit projects where different analogue signal standards are used.
