Product Overview

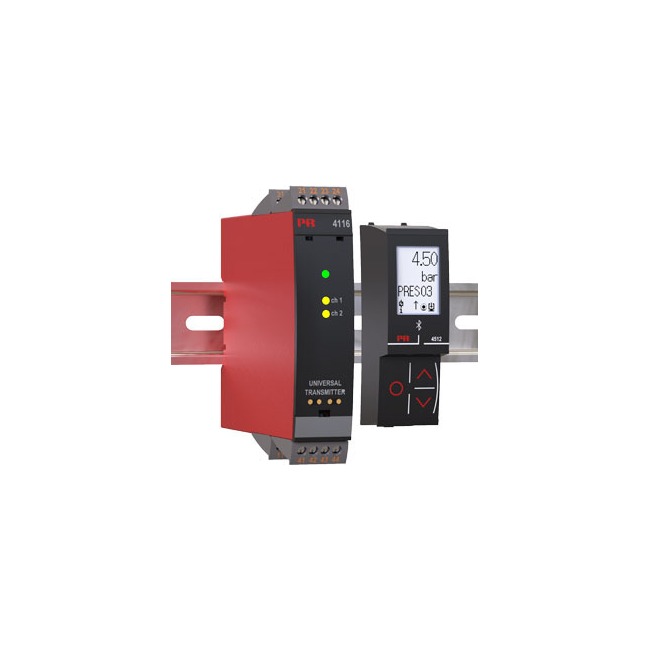

PR electronics 4116 is a universal transmitter designed for industrial signal conversion, temperature measurement, transmitter supply and process control applications.
The 4116 supports multiple input types including RTD, thermocouple, resistance, potentiometer, current and voltage signals. It is a flexible choice for customers looking for PR electronics 4116 universal transmitter, signal isolator, temperature transmitter or process control module replacement.
Main Functions
Input signals: RTD, TC, Ohm, potentiometer, mA and voltage input.
Output signals: current output, voltage output and 2 relay outputs.
2-wire transmitter supply: more than 16 VDC, with auxiliary supply range listed as 25 to 16 VDC / 0 to 20 mA.
Supply voltage: 21.6 to 253 VAC, 50 to 60 Hz, or 19.2 to 300 VDC.
Isolation: 4-port galvanic isolation with 2.3 kVAC test voltage.
Technical Highlights
The PR electronics 4116 can convert temperature, resistance, potentiometer, current and voltage signals into standard analog current or voltage output. It can also work as a power supply and signal isolator for 2-wire transmitters.
When used with PR 4500 display series, operating parameters can be configured for different field applications without opening the device for DIP-switch adjustment.
The front LED indication helps show normal operation and malfunction status, while yellow LEDs indicate active relay outputs.
Key Specifications
Operating temperature: -20°C to +60°C
Storage temperature: -20°C to +85°C
Protection degree: IP20
Dimensions: 109 x 23.5 x 104 mm
Dimensions with PR 4500: 109 x 23.5 x 131 mm
Weight: approximately 175 g
Accuracy: better than 0.1% of selected range
Current output range: 0 to 23 mA, programmable 0/4 to 20 mA and reverse ranges
Voltage output range: 0 to 10 VDC, with programmable ranges including 0/1 to 5 V and 0/2 to 10 V
Relay output: setpoint, window, sensor error, latch, power and off functions
Applications
PR electronics 4116 is widely used for linearized electronic temperature measurement with RTD or thermocouple sensors, analog signal isolation, signal conversion, 2-wire transmitter supply and relay-based process control.
It is suitable for process automation, machine control panels, temperature monitoring, valve position feedback, solenoid monitoring, plant maintenance and industrial instrumentation projects.
Approvals
The 4116 is listed with approvals and assessments including c UL us UL 508, FM, DNV Marine, EU RO MR Type Approval and hardware assessment for use in SIL applications according to the parameter sheet.
