Product Overview

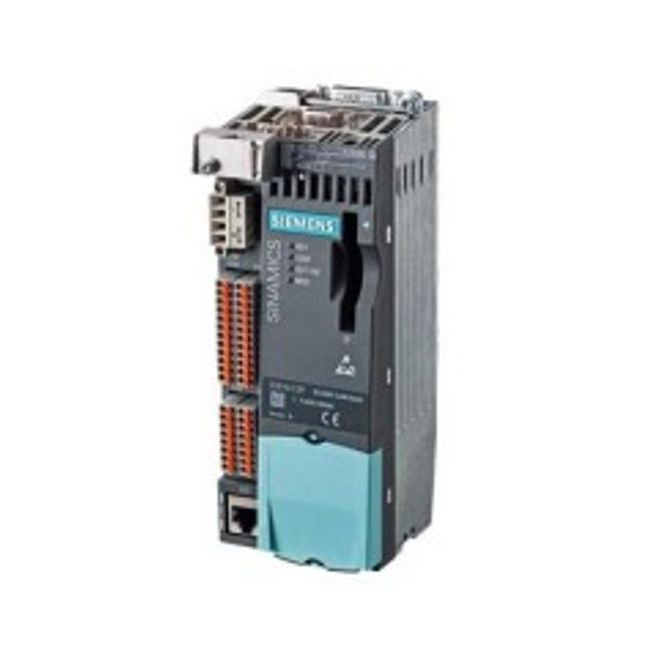

Siemens 6SL3040-1LA00-0AA0 is a SINAMICS S110 CU310-2 DP control unit designed for drive control and automation applications.
This model is suitable for customers looking for Siemens SINAMICS S110 control unit, CU310-2 DP module, 6SL3040-1LA00-0AA0 replacement, or Siemens drive spare parts quotation support.
Product Information
Brand: Siemens
Model: 6SL3040-1LA00-0AA0
Series: SINAMICS S110
Product Description: Control unit CU310-2 DP
Communication: PROFIBUS DP
Inputs and Outputs
Digital inputs: 11 inputs, voltage range -3 to 30 V, with low level -3 to 5 V and high level 15 to 30 V.
Bidirectional digital I/O: 8 parameterizable channels, which can be used as digital inputs or digital outputs according to the application requirement.
Digital output voltage: DC 24 V, with load current per digital output up to 500 mA.
Analog input: 1 channel, switchable between voltage input and current input.
Electrical Data
Electronics power supply: DC 24 V, operating range 20.4 to 28.8 V.
Maximum power consumption: 0.8 A.
Maximum power loss: 20 W.
Maximum protection: 20 A.
Encoder and Communication
The CU310-2 DP supports PROFIBUS DP communication and includes an on-board encoder interface.
Encoder evaluation supports optional incremental encoder TTL/HTL or SSI encoder without incremental signals.
Maximum encoder frequency: 300 kHz.
SSI baudrate: 100 to 1,000 kBaud, with SSI absolute position resolution up to 30 bit.
Connections
DRIVE-CLiQ: 1 connection
PROFIBUS: 1 connection
Ethernet: 1 connection
Temperature sensor: 1 connection
Measuring sockets: 3
Flash card slot: 1
Mechanical and Environmental Data
Net weight: 0.95 kg.
Dimensions: 73.0 mm width, 191.0 mm height, 75.0 mm depth.
Operating ambient temperature: 0 to 55 °C.
Storage temperature: -25 to 55 °C.
Transport temperature: -40 to 70 °C.
Standards compliance: CE, KC, cULus, EAC and C-Tick / RCM.
Applications
Siemens 6SL3040-1LA00-0AA0 CU310-2 DP is used in SINAMICS drive systems, machine automation, motion control and industrial equipment maintenance projects.
HONGKONG XIEYUAN TECH CO., LIMITED can support Siemens SINAMICS S110 CU310-2 DP control unit inquiries, replacement sourcing and industrial automation spare parts supply.
