Product Overview

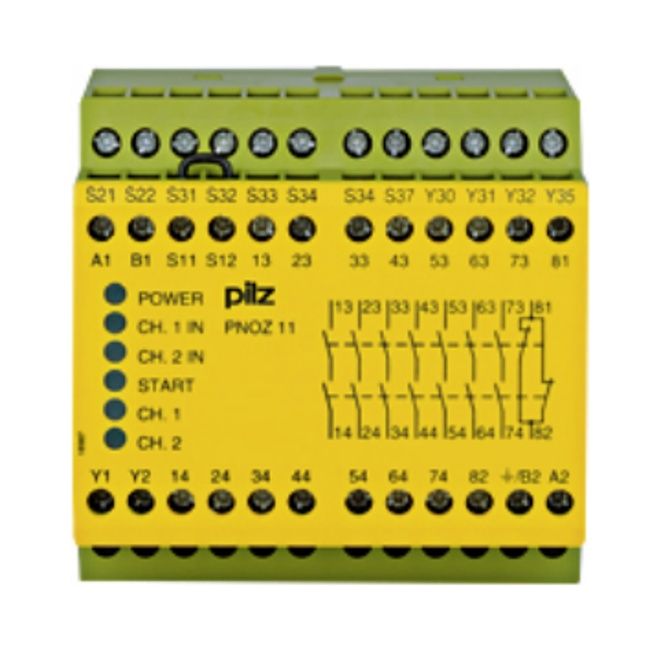

Pilz 774080 PNOZ 11 is a standalone safety relay for industrial machine safety and control cabinet applications.
The product configuration is PNOZ 11 24VAC 24VDC 7n/o 1n/c, with 24 V AC/DC supply, screw terminals, E-STOP monitoring and safety gate monitoring.
This page is prepared for customers searching for Pilz 774080, PNOZ 11 safety relay, Pilz safety relay module, emergency stop relay, safety gate monitoring relay, or machine safety spare parts quotation support.
Main Product Information
Brand: Pilz
Model / Order No.: 774080
Product Series: PNOZ 11
Description: Safety relay, standalone.
Inputs: 1-channel or 2-channel wiring with detection of shorts across contacts.
Outputs: 7 N/O safety contacts, 1 N/C auxiliary contact and 1 semiconductor output.
Terminal Type: Integrated screw terminals.
Electrical Data
Supply voltage U1: 24 V AC.
Supply voltage U2: 24 V DC.
Power consumption AC: 9 VA.
Number of inputs: 2.
Number of semiconductor outputs: 2.
Relay contact material: AgSnO2 with gold plating.
Relay Output Data
Utilisation category AC/DC1 standard: EN 60947-4-1.
Voltage AC1 safety contact: 240 V.
Maximum current AC1 safety contact: 8 A.
Voltage DC1 safety contact: 24 V.
Maximum current DC1 safety contact: 8 A.
Utilisation category AC15/DC13 standard: EN 60947-5-1.
Mechanical and Environmental Data
Width: 90 mm.
Height: 87 mm.
Depth: 121 mm.
Mounting position: Any.
Housing protection: IP40.
Net weight: 640 g.
Approvals and Compliance
Approvals include CCC, CE, UKCA, cULus Listed, EAC and TUV.
The product is RoHS compliant and listed for machine safety applications where reliable safety switching and monitoring are required.
Application Areas
Pilz 774080 PNOZ 11 can be used for emergency stop circuits, safety gate monitoring, machine safety upgrades, control cabinet maintenance and replacement of existing PNOZ safety relay modules.
It is suitable for buyers who need Pilz PNOZ 11 spare parts, safety relay replacement, automation maintenance support and fast quotation for industrial control components.
Why Choose HONGKONG XIEYUAN TECH
HONGKONG XIEYUAN TECH CO., LIMITED supports industrial automation spare parts supply, model checking and quotation for Pilz safety relays and related machine safety components.
Please provide the exact model, quantity and application information when sending an inquiry, so we can help check availability and offer suitable procurement support.
