Product Overview

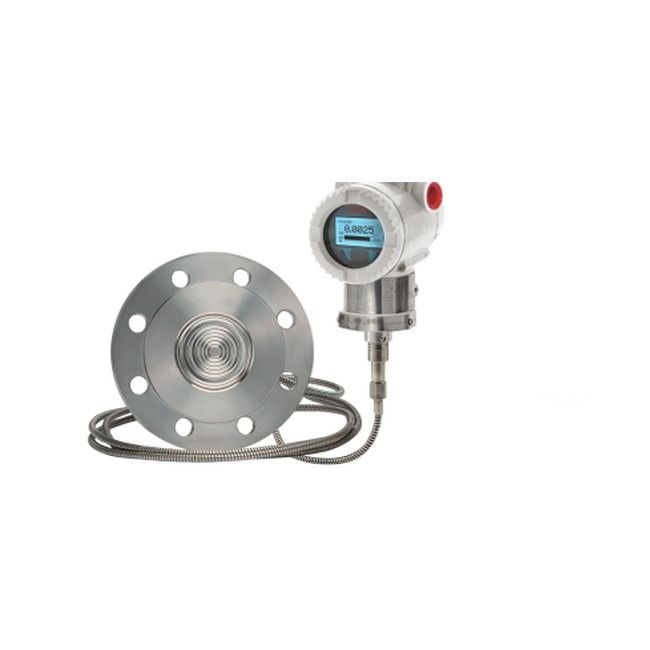

ABB PGS300, PGD300, PAS300 and PAD300 are gauge and absolute pressure transmitters from ABB Measurement & Analytics, designed for reliable industrial pressure and level measurement.
PGS300 and PAS300 are all-rounder pressure transmitters for measuring liquid, gas or steam pressure, as well as liquid level in open tanks.
PGD300 and PAD300 versions can be used with S26 diaphragm seals for applications where process media, temperature, viscosity or remote installation requires diaphragm seal isolation.
This product page is prepared for customers searching for ABB PGS300, ABB PGD300, ABB PAS300, ABB PAD300, ABB gauge pressure transmitter, ABB absolute pressure transmitter, ABB pressure transmitter with remote diaphragm seal, S26 diaphragm seal transmitter and ABB HART pressure transmitter quotation support.
Main Product Information
Brand: ABB
Model / Series: PGS300 / PGD300 / PAS300 / PAD300
Product Type: Gauge and absolute pressure transmitters
Application: Pressure measurement for liquids, gases and steam, plus open tank level measurement.
Diaphragm Seal Versions: PGD300 / PAD300 can be configured with S26 diaphragm seals for demanding process applications.
Communication: HART communication with 4 to 20 mA output, depending on selected configuration.
Key Features
Base accuracy up to 0.05% of calibrated span supports stable and reliable process measurement.
Turn down ratio up to 100:1 helps cover a wide measuring range with fewer transmitter variants.
Digital Advanced Diagnostics helps support maintenance and device condition monitoring.
Long-term stability of 0.1% of URL over 10 years helps reduce drift and maintenance workload.
LCD display and keypad options support convenient local configuration, while Bluetooth technology enables easier remote operation where selected.
All-welded diaphragm seal construction helps reduce leakage risk and supports demanding line pressure and vacuum applications.
Technical Highlights
Available process isolating diaphragm materials include AISI 316L stainless steel, Hastelloy C276, gold-plated 316L, Inconel 718 and H-Shield options depending on configuration.
Electronics housing options include aluminum alloy with baked epoxy finish or stainless steel AISI 316L.
Ingress protection options include IP66, IP67 and NEMA Type 4X, with IP68 available on request depending on configuration.
Ambient temperature capability depends on model, fill fluid, display and approval options, with selected configurations supporting low-temperature and high-temperature process environments.
HART versions provide 4 to 20 mA output with digital communication. A minimum 250 ohm loop resistance is required for HART communication.
Output signal can be configured for linear or square root applications.
Typical Applications
ABB PGS300, PGD300, PAS300 and PAD300 pressure transmitters can be used in chemical, oil and gas, power, water and wastewater, pulp and paper, marine, food and beverage, pharmaceutical and general process industries.
They are suitable for pressure measurement, absolute pressure measurement, open tank level measurement, diaphragm seal applications, high-viscosity media, corrosive media, sanitary process connections and remote mounting installations.
Why Choose HONGKONG XIEYUAN TECH
HONGKONG XIEYUAN TECH CO., LIMITED supports industrial automation and process instrumentation spare parts supply, including ABB pressure transmitters, analyzers, drives, controllers and related measurement products.
Please send the exact ABB model code, quantity and required delivery time when making an inquiry, so we can help check availability and provide quotation support quickly.
