Fisher 3582i Electro-Pneumatic Valve Positioner and 582i Converter

Fisher 3582i Electro-Pneumatic Valve Positioner and 582i Converter

Model: 3582i

Supplier: Products

Categories: Fisher

Please contact us for more information.

PRODUCT DESCRIPTION

We promise 100% original brand new with 1-year warranty.

If you are interested in our products, please feel free to contact us!

-----------------------------------------------------------

HONGKONG XIEYUAN TECH CO., LIMITED

Add: 7-A16,Caishen Commercial Plaza,Hankou Railway Station,Wuhan, China

Contact: Ms. Lily

Email: lily@hkxytech.com

WhatsApp/Skype: +86 13789949182

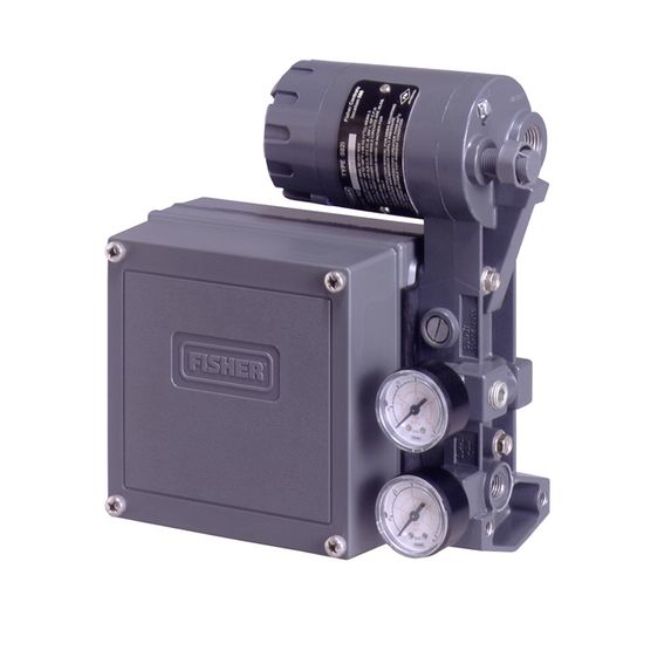

Fisher™ 3582i Electro-Pneumatic Positioner

The Fisher 3582i is a field-proven positioner which is accurate, fast-responding, and able to withstand the vibrations of most plant environments. Low steady-state air consumption contributes to efficient operation.



Specifications

Area ClassificationExplosion Proof, Intrinsically Safe, Non-incendive, Dust

CertificationsCSA, FM, ATEX, IECEx, CUTR, Peso, KGS, INMETRO, NEPSI, RCM

Communication Protocol4-20mA Analog

Data InterfaceWired

DiagnosticsNo

Input SignalElectric

Mounting TypeActuator Mounted

Operating TemperatureStandard Temperature, High Temperature

Position ControlModulating

Process ControlFlow, Pressure, Temperature, Level

Safety CertificationsNIL

Supply MediaAir

Other ConfigurationsContact your local Emerson business partner or sales office to learn about additional specifications or options for this product.




Features

  • The range of the adjustable zero and span permits the use of all standard input signals including split ranges.

  • Because units from one positioner family can be used in a variety of control applications, basic spare parts inventory requirements are simplified and fewer spare parts are needed to support a plant-wide positioner applications base.

  • With the cover removed, zero and span adjustments are easily accessible and can be made with a screw driver and spanner.

  • Changes in supply pressure and valve load have minimal effect on positioner operation.

  • Case, components, and gasket materials withstand harsh environments. Positioner bleed air purges internal parts for additional protection.

  • Simple adjustments permit switching between direct and reverse action.

  • To support diagnostic testing of valve/actuator/positioner packages with the FlowScanner™ valve diagnostic system, connectors, piping, and other hardware can be installed between the positioner and the actuator.
