Product Overview

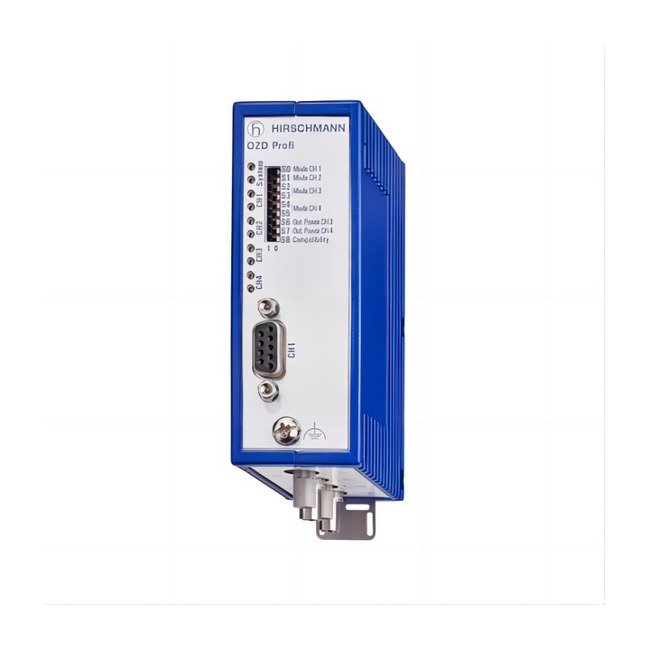

Hirschmann OZD Profi 12M G11 is an electrical/optical interface converter for PROFIBUS field bus networks. It is designed for converting PROFIBUS signals between an electrical Sub-D interface and optical fiber, helping industrial users build longer and more stable PROFIBUS communication links.

The OZD Profi 12M G11 supports repeater function and is suitable for quartz glass fiber optic connections. It is commonly used in factory automation, process control, PROFIBUS DP networks, and industrial communication systems where distance extension, noise immunity, and reliable signal transmission are important.

Main Features

Brand: Hirschmann / Belden

Model: OZD Profi 12M G11

Part Number: 942148001

Product Type: PROFIBUS electrical/optical interface converter with repeater function

Signal Type: PROFIBUS DP-V0, DP-V1, DP-V2 and FMS

Optical Interface: 1 x optical port with 2 sockets BFOC 2.5 (ST)

Electrical Interface: 1 x Sub-D 9-pin female interface according to EN 50170 part 1

Power Supply Connection: 8-pin terminal block, screw mounting

Operating Voltage: 18 to 32 VDC, typical 24 VDC

Power Consumption: 4.5 W

Redundancy: Redundant 24 V power infeed supported

Fiber Optic Network Distance

Multimode fiber 50/125 µm: up to 3000 m, 13 dB link budget at 860 nm.

Multimode fiber 62.5/125 µm: up to 3000 m, 15 dB link budget at 860 nm.

HCS multimode fiber 200/230 µm: up to 1000 m, 18 dB link budget at 860 nm.

Mechanical and Environmental Data

Operating Temperature: 0 to +60 °C

Storage Temperature: -40 to +70 °C

Relative Humidity: 10% to 95%, non-condensing

Dimensions: 39.5 x 137.5 x 84 mm

Weight: approximately 560 g

Housing Material: die-cast zinc

Mounting: DIN rail or mounting plate

Protection Rating: IP40

Approvals and Application

The Hirschmann OZD Profi 12M G11 is designed for demanding industrial PROFIBUS networks and has approvals including EU conformity, FCC, cUL61010-2-201, ISA 12.12.01 Class 1 Div. 2 and ATEX Zone 2.

This model is a good choice for PROFIBUS optical conversion, long-distance PROFIBUS communication, electrical isolation, and industrial environments where copper cable transmission may be affected by interference.
