HACH SC200 Universal Controller LXV404.99.00552 , 2 channels, Digital

HACH SC200 Universal Controller LXV404.99.00552 , 2 channels, Digital

Model: LXV404.99.00552

Supplier: Hach

Categories: Flow Controllers

Please contact us for more information.

PRODUCT DESCRIPTION


Overview

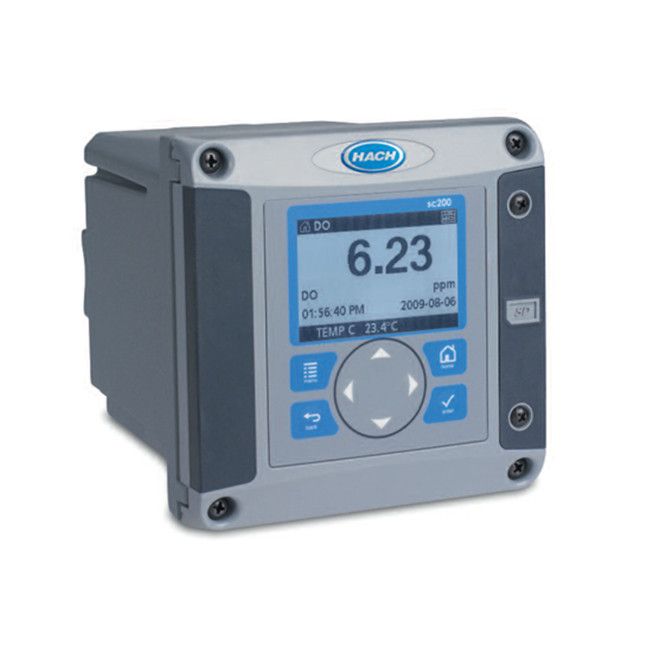

The SC200 is the most versatile controller on the market. This Universal Controller works with up to 30 digital or analog sensors for up to 17 different parameters.


It allows the use of digital and analog sensors, either alone or in combination, to provide compatibility with the broadest range of sensors. Password-protected SD card reader offers a simple solution for data download and transfer.


It replaces the Hach SC100 digital and GLI53 analog controllers with advanced features for easier operator use.



Key Benefits:


Maximum Versatility

• Broad range of sensors eliminates the need for dedicated, parameter-specific controllers.


Ease of Use and Confidence in Results

• Large, high resolution, transreflective display provides optimal viewing solution in any light condition.

• Guided calibration procedures in 19 languages minimize complexity and reduce operator error.

• Visual warning system provides critical alerts.


Wide Varity of Communication Options

• Utilize two to five analog outputs to transmit primary and secondary values for each sensor, or integrate Hach sensors and analyzers into Modbus RS232/RS485 or Profibus DPV1, and HART networks.







SC200 Universal Controller: 100-240 V AC with one digital sensor input and two 4-20 mA outputs


Product #: LXV404.99.00502


One Controller for All of Your Water Testing Needs

The Hach SC200 Universal Controller is the most versatile controller on the market. It allows the use of both digital and analog sensors, to provide compatibility with the broadest range of sensors. The SC200 replaces the Hach SC100 digital and GLI53 analog controllers with advanced features for easier operator use. Customers may add communication modules for a variety of protocols including MODBUS RTU, Profibus DPV1, and HART. The SC200 is compatible with sensors for over 17 parameters, including pH/ORP, dissolved oxygen, chlorine, conductivity, flow, turbidity, and much more.


  • Maximum Versatility

  • Intuitive and Easy to Use

  • Confidence in Results

  • One Controller, Numerous Communication Options

  • Broadest Range of Sensors



HACH_SC200-CONTROLLER


Please specify model code when ordering.

Ordering Information:


SC200 for Hach Digital and Analog Sensors

LXV404.99.00552  SC200 controller, 2 channels, digital

LXV404.99.00502  SC200 controller, 1 channel, digital

LXV404.99.00102  SC200 controller, 1 channel, pH/DO

LXV404.99.00202  SC200 controller, 1 channel, Conductivity

LXV404.99.01552  SC200 controller, 2 channels, digital, Modbus RS232/RS485

LXV404.99.00112  SC200 controller, 2 channel, pH/DO



SC200 for Ultrapure Sensors

9500.99.00602  SC200 controller, 1 channel, ultrapure conductivity

9500.99.00702  SC200 controller, 1 channel, ultrapure pH

9500.99.00662  SC200 controller, 2 channel, ultrapure conductivity

9500.99.00772  SC200 controller, 2 channel, ultrapure pH


Sensor and Communication Modules

9012900 Analog pH/ORP and DO module for GLI Sensors

9013000 Analog Conductivity module for GLI Sensors

9012700 Flow module

9012800 4-20 mA Input Module

9525700 Analog pH/ORP Module for Polymetron Sensors

9525800 Analog Conductivity Module for Polymetron Sensors

9013200 Modbus 232/485 Module

9173900 Profibus DP Module

9328100 HART Module

9334600 4-20 mA Output Module (Provides 3 additional mA Outputs)



Accessories

9220600 SC200 Weather and Sun Shield with UV Protection Screen

8809200 SC200 UV Protection Screen

9218200 SD card reader (USB) for connection to PC

9218100 4 GB SD card
