New Arrival ABB PM866AK02 Redundant Processor Unit , 3BSE081637R1

News January 12, 2023


The CPU board contains the microprocessor and RAM memory, a real-time clock, LED indicators, INIT push button, and a CompactFlash interface.

The base plate of the PM866 / PM866A controller has two RJ45 Ethernet ports (CN1, CN2) for connection to the Control Network, and two RJ45 serial ports (COM3, COM4). One of the serial ports (COM3) is an RS-232C port with modem control signals, whereas the other port (COM4) is isolated and used for the connection of a configuration tool. The controller supports CPU redundancy for higher availability (CPU, CEX-Bus, communication interfaces and S800 I/O).

Simple DIN rail attachment / detachment procedures, using the unique slide & lock mechanism. All base plates are provided with a unique Ethernet address which provides every CPU with a hardware identity. The address can be found on the Ethernet address label attached to the TP830 base plate.

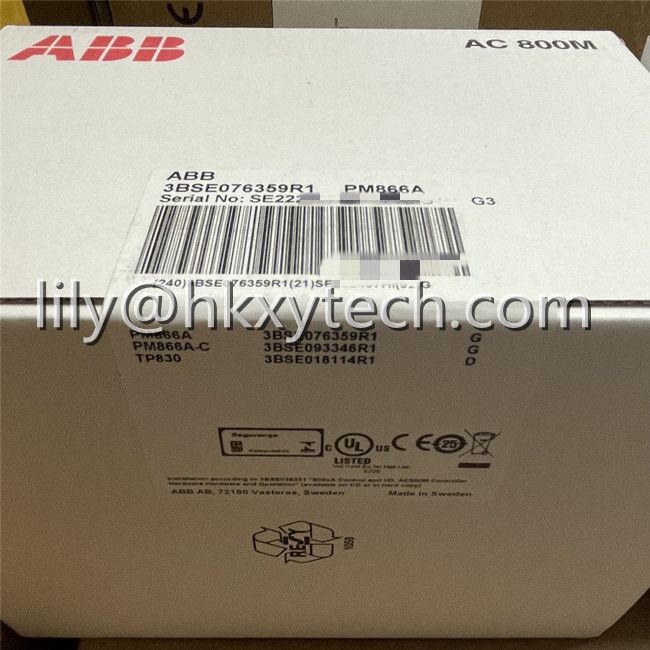

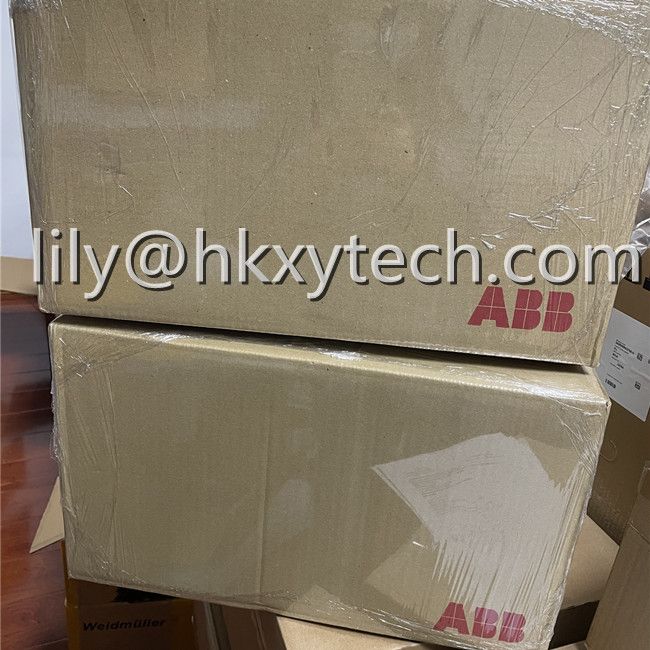

Package including:

2 pcs PM866A, CPU

2 pcs TP830, Baseplate, width =115mm

2 pcs TB807, ModuleBus terminator

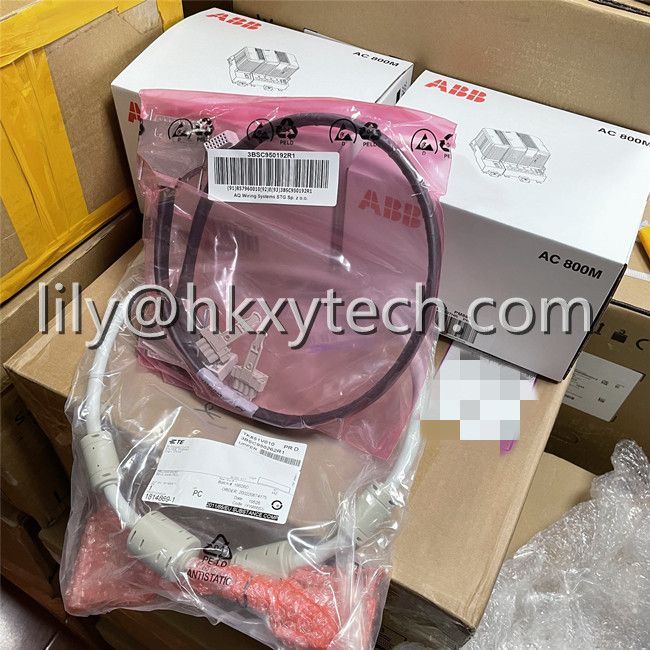

1 pcs TK850, CEX-bus expansion cable

1 pcs TK851, RCU-Link cable

2 pcs Battery for memory backup (4943013-6) 1 for each CPU


General info
Article number3BSE081637R1 (PM866AK02)
High IntegrityNo
Clock Frequency133 MHz
Performance, 1000 boolean operations0,09 ms
Performance0,09 ms
Memory64 MB
RAM available for application51.389 MB
Flash memory for storageYes

Detailed data
Processor typeMPC866
Switch over time in red. conf.Max 10 ms
No. of applications per controller32
No. of programs per application64
No. of diagrams per application128
No. of tasks per controller32
Number of different cycle times32
Cycle time per application programsDown to 1 ms
Flash PROM for firmware storage4 MB
Power supply24 V DC (19.2-30 V DC)
Power consumption +24 V typ/max210 / 360 mA
Power dissipation typ.5.1 W (8.6 W max)
Redundant power supply status inputYes
Built-in back-up batteryLithium, 3.6 V


Features and benefits

  • ISA Secure certified - Read more

  • Reliability and simple fault diagnosis procedures

  • Modularity, allowing for step-by-step expansion

  • IP20 Class protection without the requirement for enclosures

  • The controller can be configured with 800xA control builder

  • The controller has full EMC certification

  • Sectioned CEX-Bus using a pair of BC810 / BC820

  • Hardware based on standards for optimum communication connectivity (Ethernet, PROFIBUS DP, etc.)

  • Built-in redundant Ethernet Communication ports
