SEW Inverter drive MOVIDRIVE MDX60B/61B MDX61B0015-5A3-4-0T

MOVIDRIVE® B drive inverter

Flexible, compact and intelligent: our MOVIDRIVE® B drive inverters. They save space in the control cabinet and are equipped with integrated positioning and sequence control as standard.

They control everything: MOVIDRIVE® B drive inverters

Whether asynchronous AC drives or synchronous servo drives - the MOVIDRIVE® B drive inverters can control it. The broad power range from 0.55 kW to 315 kW, the fantastic overload capacity and the modular concept of the MOVIDRIVE® B inverter help to improve the flexibility and efficiency of your applications.

The compact design of the MOVIDRIVE® drive inverter saves space in the control cabinet, while its high user-friendliness ensures that you save time during parametrization, while the intelligent IPOSplus® positioning and sequence control is included as standard.

A multitude of inputs and outputs in the drive inverter ensure a competent basic functionality. Optional communication and technology modules provide for quick and easy extension.

Your benefits

-Universal motor control and control technology

MOVIDRIVE® drive inverters control asynchronous AC drives as well as synchronous servo drives.

-Broad and flexible range of options

e.g. fieldbus interfaces, encoder interfaces and safety functions enable individual applications.

-Compact design

thanks to its book-style design: it enables a seamless connection and saves space in the control cabinet.

-Integrated functional safety

with its STO (Safe Torque Off) safety function in accordance with PL d pursuant to EN ISO 13849-1.

Features

*Configurable inverter adapted to your application

*Broad voltage and power range

*Flexible application with synchronous and asynchronous motors

*Safe Torque Off (STO) EN ISO 13849-1 PL d

*Modular design, incl. a wide range of options

Versions

1. Standard version

The units are equipped with the IPOSplus® integrated positioning and sequence control system as standard. They can also be expanded with the available options. "00" at the end of the type designation indicates the standard design.

2. Application version

In addition to the features of the standard design, these units include the "electronic cam" and "internal synchronous operation" technology functions. The application version is indicated by "0T" following the type designation.

The application version units also provide access to the application modules, the standardized control programs to solve sophisticated technical drive tasks, such as

synchronized applications

positioning

flying saw

winders

Application module benefits:

high functionality and user-friendly operator interface

you only have to enter the parameters needed for the application

guided procedure for setting parameters instead of complicated programming

no lengthy training or familiarization, which means quick project planning and startup

all motions are controlled directly in the MOVIDRIVE®

decentralized concepts can be implemented more easily

Model code & part number:

MDX61B0011-5A3-4-0T    08277362

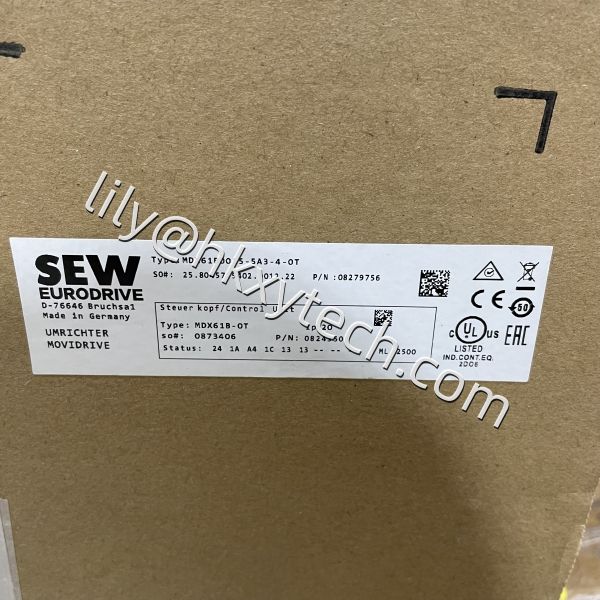

MDX61B0015-5A3-4-0T    08279756

MDX61B0014-5A3-4-0T    08277370

MDX61B0022-5A3-4-0T    08279764

MDX61B0005-5A3-4-00    08277303

MDX61B0008-5A3-4-00    08277311

MDX61B0011-5A3-4-00    0827732X

MDX61B0015-5A3-4-00    08279578

MDX61B0014-5A3-4-00    08277338

MDX61B0022-5A3-4-00    08279586

MDX61B0030-5A3-4-00    08279594

MDX61B0040-5A3-4-00    08279608

MDX61B0055-5A3-4-00    08279616

MDX61B0075-5A3-4-00    08279624

MDX61B0110-5A3-4-00    08279632

MDX61B0150-503-4-00     08279640

MDX61B0220-503-4-00     08279659

MDX61B0300-503-4-00     08279667

MDX61B0370-503-4-00     08279675

MDX61B0450-503-4-00     08279683

MDX61B0550-503-4-00     08279691

MDX61B0750-503-4-00     08279705

MDX61B0900-503-4-00     08279713

MDX61B1100-503-4-00     08279721

MDX61B1320-503-4-00     08279748

MDX61B1600-503-4-0T/L  08299803

MDX61B2000-503-4-0T/L  08299811

MDX61B2500-503-4-0T/L  08299838
