Rosemount 1056 Series Intelligent Four-Wire Transmitter

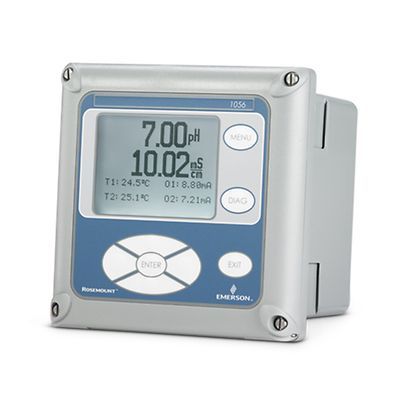

Rosemount™ 1056 Intelligent Four-Wire Transmitter

Product Description

The Rosemount 1056 Transmitter offers single or dual sensor input with an unrestricted choice of dual measurements, reducing the cost per loop and saving panel space.

This multi-parameter liquid analysis transmitter offers a wide range of measurement choices, including differential conductivity, dual oxygen and many other combinations supporting most industrial, commercial and municipal applications. The modular design of the transmitter allows signal input boards to be field replaced making configuration changes easy.

Multi-parameter Transmitter for Liquid AnalysisThe Rosemount 1056 Dual Channel Transmitter displays up to two independent liquid analytical measurements. HART and ProfibusDP digital

communication options allow for connection to HART hosts and Profibus networks. Start-up and installation of the 1056 iseasy by using Quick Start Programming.

Specifications

Enclosure RatingPolycarbonate. Type 4X, IP65.

Certifications/ApprovalsFM/CSA/UL (See Product Data Sheet for complete list of certifications.)

DimensionsOverall 155 x 155 x 131mm (6.10 x 6.10 x 5.15 in.). Cutout: 1/2 DIN 139mm x 139mm (5.45 x 5.45 in.)

Weight3 lbs/4 lbs (1.5 kg/2.0 kg)

Features

• Fast and easy installation using Quick Start programming, auto-recognition of sensor boards and modular design

• Large customizable display provides at-a-glance view of pertinent information

• Visibility of process parameters by utilizing HART® or Profibus DP digital communications

• Effortlessly connect with PLCs and DCS’ by choosing the HART® or Profibus DP communication options

• Transmitter is compatible with a variety of Rosemount pH sensors, conductivity sensors, dissolved oxygen sensors, chlorine sensors, ozone sensors and turbidity sensors. Also offers a flow/current input card.
