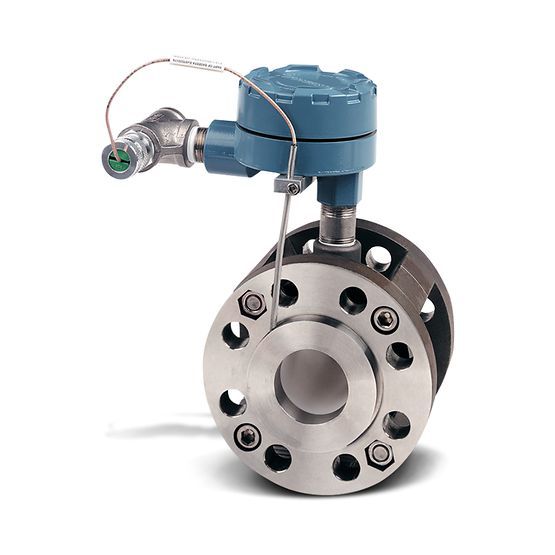

Rosemount™ 242 Flow Through Toroidal Conductivity Sensor

Product Description

The Rosemount 242 Flow Through Toroidal Conductivity Sensor features a noninvasive flow through design allowing for in-line installations without any obstruction to sample flow. This conductivity sensor is ideal for measuring conductivity in highly conductive liquids up to 2 S/cm (2,000,000 μS/cm) and for use in viscous, abrasive or fibrous liquids.

Specifications

Measurement RangeConductivity Range: 100 µS/cm to 2 S/cm

Weight1" to 2": 22 lbs. (10kg)

3" to 4": 86 lbs. (39 kg)

Maximum TemperatureSee Product Data Sheets for details.

Maximum PressureSee Product Data Sheets for details.

Materials of ConstructionWetted Materials:

Liner: Teflon (PTFE), glass-filled PEEK, or alumina

Contact Rings: 316 SST, Carpenter 20Cb-3® SST, or Hastelloy® C-276

O-Rings: EPDM, Viton™ (FKM), or Chemraz® (FFKM)

Features

Robust measurements - insensitive to process flow rate and direction

Plugging resistant and suitable for liquids containing high levels of suspended solids

Avoid accumulation of solids with no part of the conductivity sensor protruding into the sample flow

Minimize down time with in-line calibrations

Line sizes of 1, 1.5, 2, 3, and 4 inches (25, 40, 50, 80 and 100 mm) are available with ANSI and DIN compatible flanges

Ensure process compatibility with a variety of liner and O-ring materials

Simplified wiring with integral junction box
