Rosemount™ FCL Free Chlorine Measuring System

Product Description

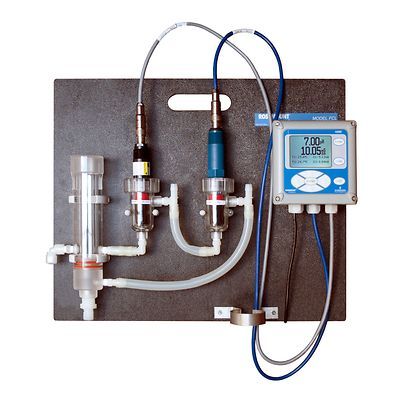

The Rosemount FCL Free Chlorine Measuring System measures free chlorine in fresh water. The free chlorine system includes a transmitter (Rosemount 56 Transmitter or Rosemount 1056

Transmitter), a Rosemount 499ACL Free Chlorine Sensor, a pH sensor (if required) and a constant head flow controller. The transmitter and flow controller are mounted on a back plate,

and quick disconnect Variopol (VP) sensor cables are pre-wired to the transmitter, making installation and startup fast and easy

Specifications

Measurement Range 0 to 10 ppm as Cl2. For higher ranges, consult the factory.

Accuracy Accuracy depends on the accuracy of the chemical test used to calibrate the free chlorine sensor

Temperature Range 32 to 122°F (0 to 50°)

Pressure Range3 to 65 psig (122 to 549 kPa abs)

Materials of ConstructionWetted Materials:

Overflow Sampler & Flow Cell: Acrylic, polycarbonate, polyester, Kynar(R), nylon, silicone

Rosemount 499ACL Free Chlorine Sensor: Noryl™, Viton™, platinum, polyethersulfone, polyester, wood, silicone

Rosemount 3900VP pH Sensor: Stainless steel, glass, Teflon, polyphenylene sulfide, EPDM, silicone

Features

• Complete system includes free chlorine sensor, connecting cable, transmitter and flow controller (pH sensor if selected)

• Continuous pH correction eliminates expensive and messy reagents and troublesome sample conditioning systems

• Measures free chlorine in samples having pH levels as high as 9.5

• Available with choice of two feature-packed liquid transmitters
