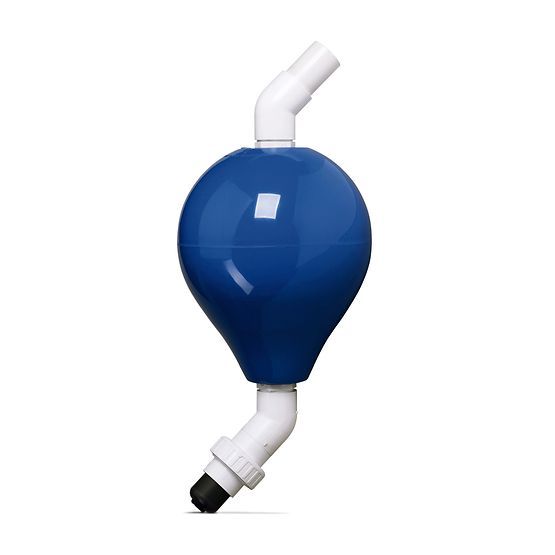

Floating Ball System

• FLOATING BALL SYSTEM designed to suspend a DissolvedOxygen Sensor

• COMPATIBLE WITH ROSEMOUNT Dissolved Oxygen SensorModel 499ADO

• MAINTAINS CONSTANT SENSOR DEPTH regardless of changesin liquid or tank level

• EXTENDED BUOYANCY supports sensor weight with reservecapacity

• ACCEPTS ANY SENSOR WITH 1 INCH REAR FACING MNPTCONNECTION

FEATURES AND APPLICATIONS

• The Floating Ball System is a flotation device designed to mount the Dissolved Oxygen (DO) sensor Model499ADO, and keep the sensor at a fixed distance in the process, regardless of

• changes in height of the process.Reliable DO monitoring can now be accomplished by attaching the DO sensor Model 499ADO to the FloatingBall Model BB11.

•


• Instead of being limited to position the sensor near the tank edge or near a handrail, the Floating Ball Systemprovides the flexibility to position the sensor almost anywhere in the basin.

• Owing to the unique design, the floating ball provides extended buoyancy and will accommodate the combined weight of the sensor washer headassembly, pipe boom with room to spare for additional weight.

•


• The Floating Ball System can also be used with any sensor with a 1 inch rear facing MNPT connection and willmaintain the sensor at a fixed location in process, even when the height of the

•  process changes.

SYSTEM DESCRIPTION

The materials of construction of the floating ball is thick walled flexible PVC material, and includes PVC elbowsand fittings to angle the sensor into the process and prevent air bubbles

from becoming trapped and preventerratic sensor readings.

The floating ball is supplied in kit form and includes the PVC fittings for attaching the sensor. The floating ball willaccommodate a pipe boom using a 1-1/2 inch diameter Schedule 80 PVC

pipe. The support arm is availablefrom local stock.

Specifications

Wetted MaterialFlexible Poly Vinyl Chloride, PVC

Temperature Range32°F to 140°F (0°C to 60°C)

Size (Diameter x Length)11 x 13 inches (28 x 33 cm)

Minimum Sensor Insertion Depth Into Process13 inches (33 cm) to 17 inches (43 cm) depending on sensor and assembly, see Product Detail Sheet for details.

Sensor Compatibility1 inch MNPT on sensor cable end

Weight/Shipping Weight5 lbs/6 lb. (2.5 kg/3.0 kg) [rounded to the nearest 1 lb. (0.5 kg)]

Features

• Compatible with Rosemount 499ADO Dissolved Oxygen Sensor and any sensor with a 1 in. rear MNPT connection

• Maintains constant sensor depth regardless of changes in liquid or tank level

• Extended buoyancy supports sensor weight with reserve capacity
