Specs at a glance

Max. measurement error

Volume flow (standard): ±0.5 % o.r. ± 1 mm/s (0.04 in/s)

Volume flow (option) ±0.2 % o.r. ± 2 mm/s (0.08 in/s)

Measuring range

0.06 dm³/min to 600 m³/h (0.015 to 2650 gal/min)

Medium temperature range

–20 to +150 °C (–4 to +302 °F)

Max. process pressure

PN 40, Class 150, 20K

Wetted materials

Liner: PFA

Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); Tantalum; Platinum

Process Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive sleeve

Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded seal (EPDM, FKM, silicone)

Grounding Rings: stainless steel, 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum

Field of application

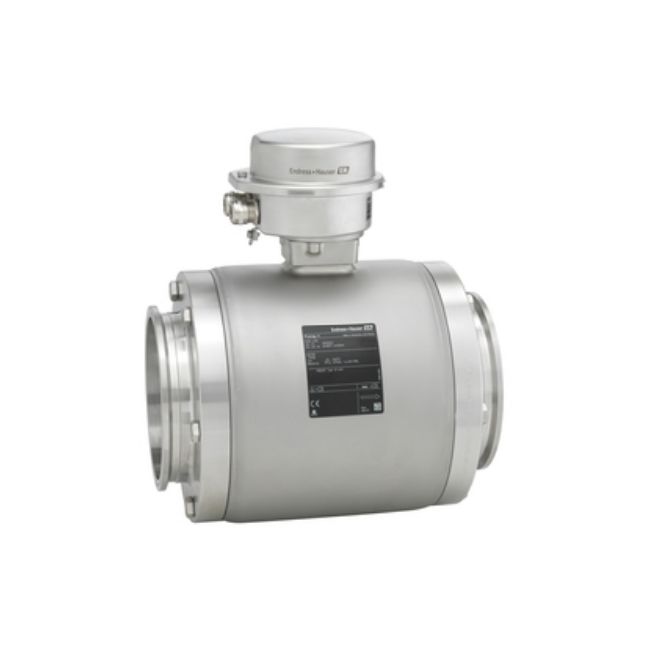

Promag H is the preferred sensor for hygienic applications with highest requirements in the food and beverage and life sciences industries. The ultra-compact transmitter provides full performance on the smallest footprint and enables seamless system integration, making Promag H 100 the preferred choice for skid builders, equipment manufacturers and system integrators. Heartbeat Technology enables compliance and process safety at all times.

The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity

Dedicated to demanding applications in the food and beverage as well as in life sciences industries

Device properties

Integrated temperature measurement

Sensor housing made of stainless steel (3-A, EHEDG)

Wetted materials CIP, SIP cleanable

Robust, ultra-compact transmitter housing

High ingress protection: IP69

Local display available

Benefits

Multivariable measurement for flow, temperature and conductivity

Flexible installation – numerous hygienic process connections and 0 x DN inlet run with constant accuracy independent of flow profile

Energy-saving flow measurement – no pressure loss due to cross-section constriction

Space-saving transmitter – full functionality on the smallest footprint

Time-saving local operation without additional software and hardware – integrated web server

Integrated verification – Heartbeat Technology

Maintenance-free – no moving parts
