Pepperl+Fuchs KFD2-BR-1.PA.1500 Segment Coupler
Segment Coupler KFD2-BR-1.PA.1500

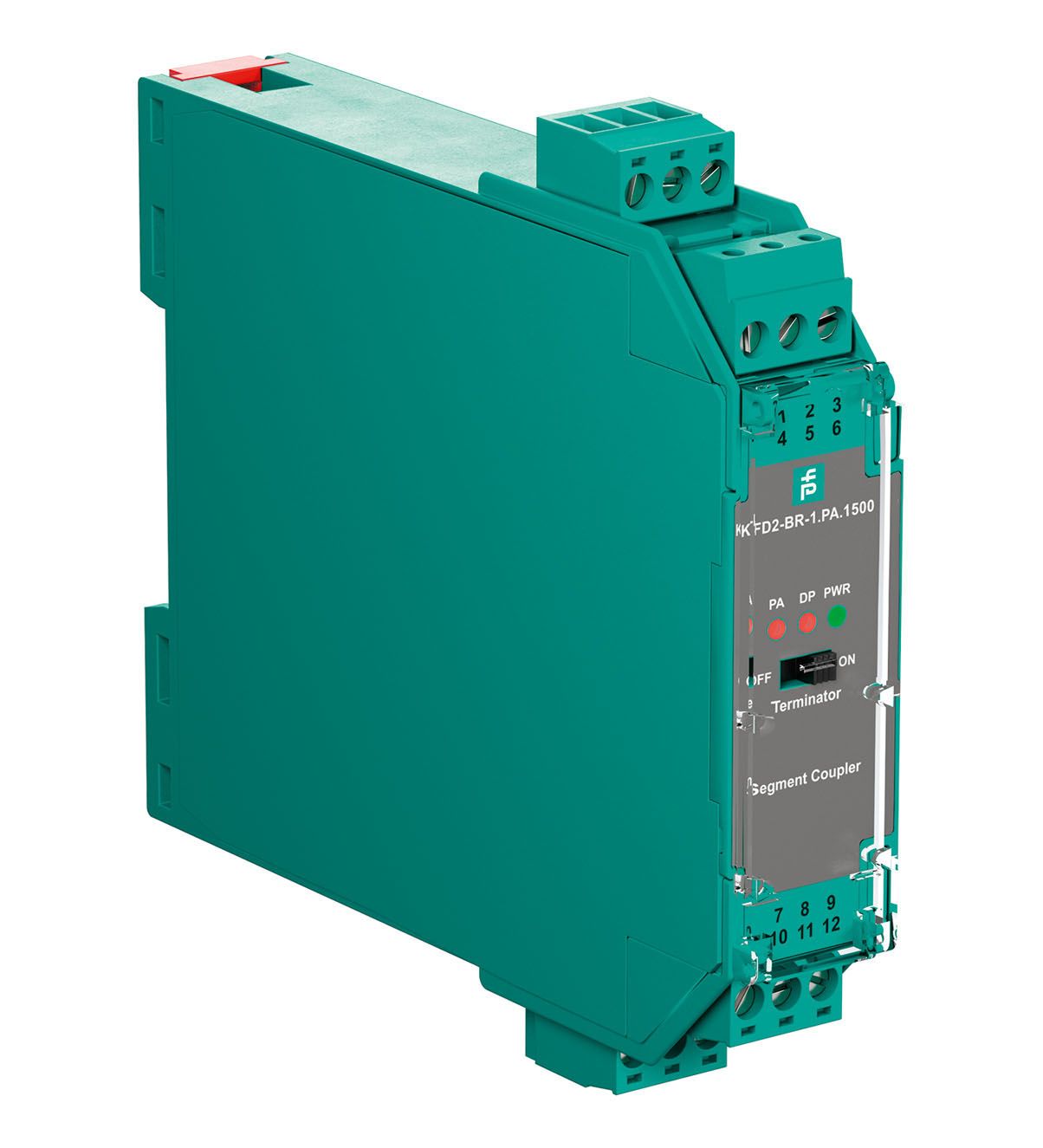

Pepperl+Fuchs KFD2-BR-1.PA.1500 is a segment coupler for PROFIBUS DP to PROFIBUS PA communication. It combines power supply and gateway functions for transparent connection of PROFIBUS PA field devices to PROFIBUS DP networks.
Features
Segment coupler 1, power supply and gateway for PROFIBUS DP to PROFIBUS PA communication
Output: 24 ... 26 V / 400 mA
Couples PROFIBUS PA devices transparently to PROFIBUS DP
High-power trunk for high device count and long cable lengths
Installation in Zone 2 / Class I, Div. 2
Up to 1.5 MBit auto-adapting
For Europe, USA, and Canada applications
Technical Data
| Installation in hazardous area | Zone 2 / Div. 2 |
| Supply connection | Power Rail or terminals 11 (L+), 12 (L-) |
| Rated voltage | 20 ... 30 V DC |
| Ripple | <= 10 % |
| Rated current | 640 mA ... 365 mA |
| Power dissipation | max. 2.5 W |
| Number of segments | 1 |
| PROFIBUS PA output | 24 ... 26 V, max. 400 mA |
| Terminating impedance | 100 Ohm integrated |
| PROFIBUS DP baud rate | max. 1.5 MBit/s |
| Ambient temperature | -40 ... 60 degC |
| Storage temperature | -40 ... 85 degC |
| Relative humidity | < 95 %, non-condensing |
| Connection type | Screw terminal, pluggable |
| Housing material | Polycarbonate |
| Degree of protection | IP20 |
| Mass | 180 g |
| Mounting | DIN rail mounting |
| Certifications | TUV 16 ATEX 7831 X, CSA 16.70064204, IECEx TUR 16.0006X |
