Product Overview

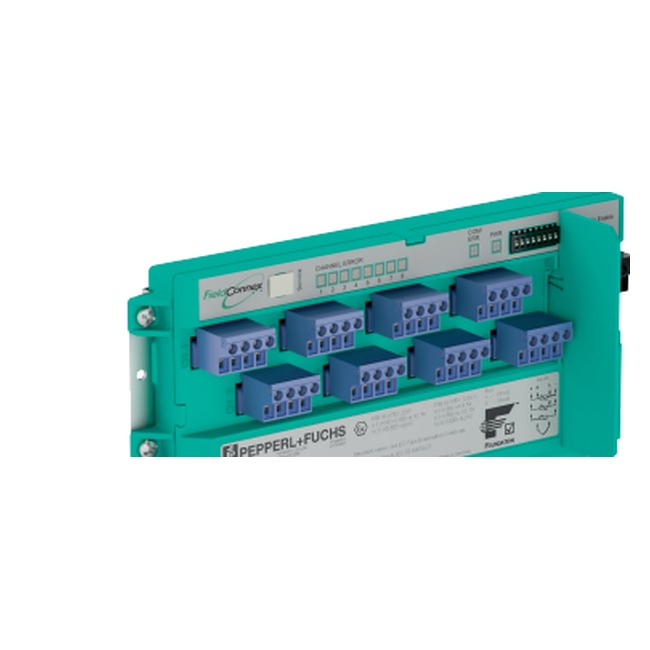

Pepperl+Fuchs RD0-TI-Ex8.FF.ST is a FieldConnex temperature multi-input interface for FOUNDATION Fieldbus H1 systems. It connects up to 8 temperature or analog sensor inputs to the DCS through one fieldbus address, making it suitable for hazardous area process automation and cabinet installation.
This model is designed for DIN rail mounting in a control cabinet or pre-wired field enclosure. It supports installation in Zone 1 / Div. 1, with sensors located in Zone 0 / Div. 1, and provides intrinsically safe input connections for hazardous area measurement points.
Main Specifications
Brand: Pepperl+Fuchs
Model: RD0-TI-Ex8.FF.ST
Series: FieldConnex Fieldbus
Product type: Temperature multi-input interface
Number of inputs: 8
Fieldbus type: FOUNDATION Fieldbus H1
Terminal type: Screw terminals
Mounting: DIN rail / cabinet installation
Input and Sensor Support
RD0-TI-Ex8.FF.ST supports thermocouples, RTD sensors with 2-, 3- and 4-wire connection, voltage input and resistance input. The device includes cold junction compensation for thermocouple measurement and monitors sensor condition for lead breakage, wiring errors and short circuit conditions.
Fieldbus and Power Data
The unit communicates all data, configuration and alarms via FOUNDATION Fieldbus function blocks. It supports 8x AI or 1x MAI function block operation, FISCO or Entity fieldbus connection, profile type 511 / 111, ITK version 6.2.0 and 9 ... 32 V rated bus voltage.
Hazardous Area and Environment
This Pepperl+Fuchs temperature multi-input module is suitable for hazardous area applications with ATEX, IECEx and FM approvals. The ambient temperature range is -40 ... 70 °C in hazardous area and -40 ... 85 °C in safe area, with IP20 protection and polycarbonate housing.
Common search terms for this product include Pepperl+Fuchs RD0-TI-Ex8.FF.ST, RD0-TI-EX8.FF.ST, FieldConnex temperature multi-input, FOUNDATION Fieldbus H1 temperature interface, 8 channel temperature input module, hazardous area temperature input and Pepperl+Fuchs FieldConnex spare parts.
Application
RD0-TI-Ex8.FF.ST can be used in process automation, chemical plants, oil and gas facilities, hazardous area fieldbus segments, temperature monitoring cabinets and industrial control systems where multiple temperature or analog sensor signals need to be integrated into FOUNDATION Fieldbus.
