Product Overview

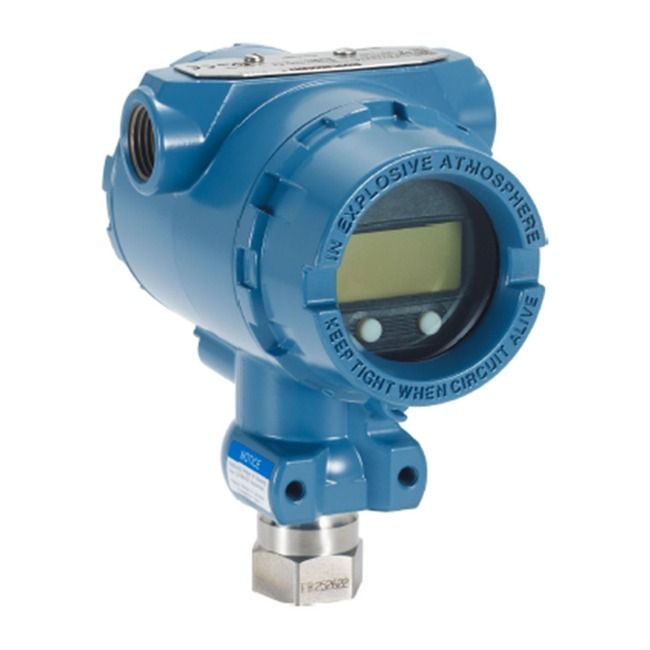

Emerson Rosemount 2088 is an absolute and gauge pressure transmitter designed for reliable pressure measurement in liquid, gas and vapor applications. Its in-line compact design helps users achieve quick installation, stable measurement and cost-effective operation in process automation systems.
The Rosemount 2088 pressure transmitter is widely used in chemical plants, oil and gas, water treatment, power generation, general process control and industrial pressure monitoring applications.
Main Features
Brand: Emerson Rosemount
Model: Rosemount 2088
Product Type: Absolute and gauge pressure transmitter
Measurement: Gauge pressure or absolute pressure
Available Output: 4-20 mA HART or 1-5 Vdc HART Low Power
Rangeability: 50:1
Accuracy: Standard reference accuracy ±0.075% of calibrated span; high accuracy option up to ±0.065%
Pressure Range: Up to 10,000 psi / 689 bar depending on selected range
Service: Liquid, gas and vapor applications
Pressure Range Options
Range 1: up to 30 psi / 2.07 bar
Range 2: up to 150 psi / 10.34 bar
Range 3: up to 800 psi / 55.16 bar
Range 4: up to 4000 psi / 275.79 bar
Range 5: up to 10000 psi / 689.5 bar
Electrical and Communication
The Rosemount 2088 supports HART digital communication, with HART Revision 5 as default and HART Revision 7 available by configuration. It can be configured using a HART-based tool or optional local operator interface.
External power supply is required. For 4-20 mA HART output, the transmitter operates on 10.5 to 42.4 Vdc with no load. Low Power output operates from 5.8 to 28 Vdc.
Material and Installation Options
Available wetted materials include 316L stainless steel and Alloy C-276. Process connection options include 1/2-14 NPT female, DIN 16288 G1/2 male, M20 x 1.5 male and RC 1/2 female depending on configuration.
The compact in-line design allows direct process connection. Optional LCD display, local operator interface, mounting brackets, manifold assembly, transient protection and calibration certificates are also available.
Environmental and Performance Data
Ambient Temperature: -40 to 85 °C; with LCD display, -40 to 80 °C.
Storage Temperature: -46 to 110 °C; with LCD display, -40 to 85 °C.
Process Temperature: -40 to 121 °C with silicone fill sensor; -30 to 121 °C with inert fill sensor.
Humidity: 0 to 100% relative humidity.
Total Response Time: 145 ms.
Update Rate: 22 times per second minimum.
Application
Rosemount 2088 is a good choice for customers looking for a compact HART pressure transmitter, gauge pressure transmitter, absolute pressure transmitter, or industrial process pressure measurement solution.
If you need Rosemount 2088 pressure transmitter quotation, replacement, configuration selection or availability, please contact HONGKONG XIEYUAN TECH CO., LIMITED.
