Product Overview

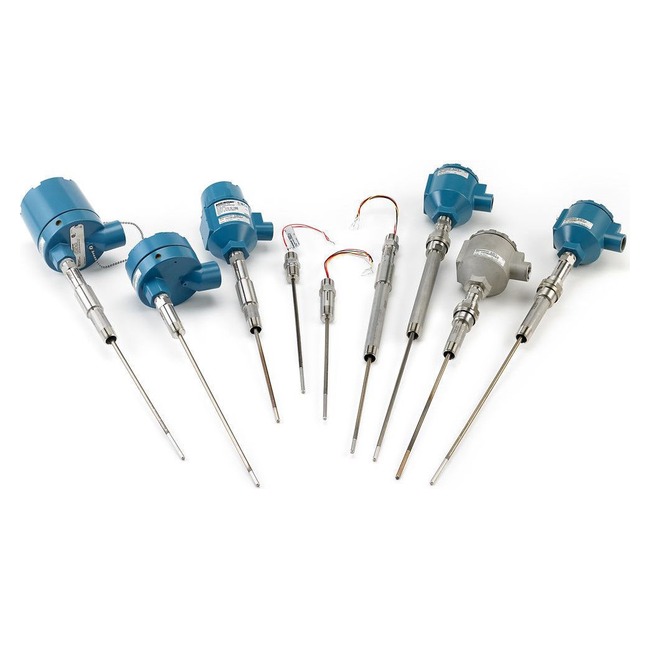

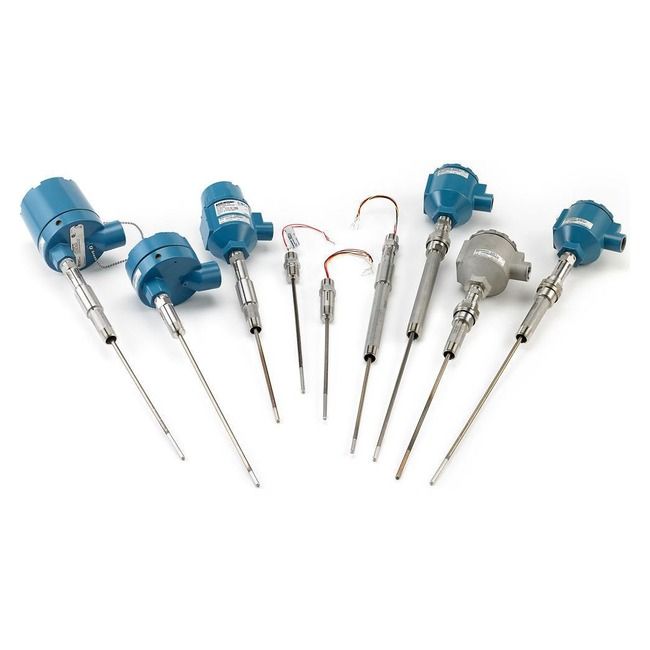

Emerson Rosemount 214C Temperature Sensors are designed for reliable temperature measurement in process monitoring and control applications.
The Rosemount 214C sensor family supports RTD and thermocouple configurations, helping users build flexible temperature measurement points for chemical plants, oil and gas, power generation, water treatment, machinery, utilities and general process automation.
Main Features
Rosemount 214C offers high accuracy resistance temperature detectors and multiple thermocouple types for different plant temperature measurement requirements.
The sensor styles and insertion lengths are available with a standard nominal outside diameter of 1/4-in. (6 mm), making the series suitable for many thermowell and assembly configurations.
Optional calibration services and calibration certificates can help users understand sensor performance and improve measurement confidence when paired with Rosemount temperature transmitters.
Sensor Types
RTD options include PT100 elements, with thin-film and wire-wound choices for different temperature ranges, vibration conditions and low-temperature applications.
Thermocouple options include Type E, Type J, Type K, Type N and Type T for common industrial temperature measurement points.
Temperature Range
RTD sensor temperature range: -321 to 1112 °F (-196 to 600 °C), depending on selected element and configuration.
Thermocouple sensor temperature range: -321 to 2192 °F (-196 to 1200 °C), depending on selected thermocouple type and application conditions.
Configuration Options
Rosemount 214C supports single and dual element configurations, including common 3-wire and 4-wire RTD options for different accuracy and redundancy requirements.
Mounting style options include spring-loaded adapter, compact spring-loaded adapter, welded adapter, compact welded adapter and adjustable spring-loaded fitting.
Standard sheath materials are defined by sensor type, and 316 stainless steel sheath material is commonly referenced for several RTD configurations in the data sheet.
Applications
The Rosemount 214C is suitable for process temperature measurement, transmitter and sensor assemblies, thermowell assemblies, maintenance replacement, critical temperature monitoring and complete point temperature solutions.
For customers searching for Rosemount 214C temperature sensor, Emerson RTD sensor, Rosemount thermocouple sensor, PT100 temperature probe or industrial temperature sensor spare parts, HONGKONG XIEYUAN TECH CO., LIMITED can support quotation and sourcing.
