Product Overview

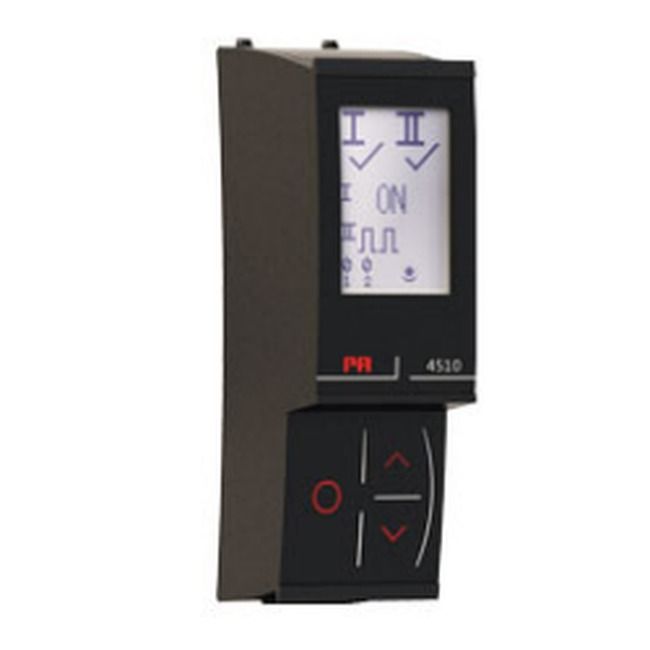

PR electronics 4510 is a display / programming front designed for PR electronics system 4000 and 9000 devices, selected system 3000 devices, and all versions of ConfigMate 4590. It provides a convenient local interface for monitoring process values, checking device status and modifying operational parameters directly at the device.
This page is prepared for customers searching for PR electronics 4510, PR 4510 display programming front, PR electronics programming display, system 4000 display, system 9000 display, ConfigMate 4590 accessory and PR electronics spare parts quotation support.
Main Product Information
Brand: PR electronics
Model: 4510
Product Type: Display / programming front
Compatible Systems: PR electronics system 4000 and 9000 devices, selected system 3000 devices, and ConfigMate 4590
Main Function: Programming, monitoring, status display and configuration transfer support
Key Features
The PR 4510 can monitor process value and device status from the built-in display, helping maintenance and commissioning personnel read key information quickly. The easy-to-read dot matrix LCD display and scrolling help text in 7 languages make setup and field operation more convenient.
Backup memory allows loading and saving of device configuration, which is useful for repeated commissioning, replacement work and transferring configuration data between compatible devices. Programming access can also be blocked by assigning a password to help reduce the risk of unauthorized changes.
Application Range
The 4510 works as a communications interface for programming and modification of operational parameters. It can be used to monitor the process signal, simulate the output signal, and indicate sensor errors or internal device errors.
The display can be moved from one compatible device to another. Individual system 3000, 4000 or 9000 device configurations can be saved and downloaded to subsequent transmitters. When mounted on devices installed upside down, the display can be rotated 180 degrees through the menu, and the up / down button function can be switched accordingly.
Technical Highlights
Operating temperature range is -20°C to +60°C, with storage temperature from -20°C to +85°C. Relative humidity is below 95% RH, non-condensing, and protection degree is IP20.
Dimensions are 73.2 x 23.3 x 26.5 mm. With a 4000 / 9000 unit, dimensions are approximately 109 x 23.5 x 131 mm. Approximate weight is 20 g.
Supply voltage is 6.5...20 V, supplied from the host 4000 / 9000 device. Maximum required power is 0.15 W.
Approvals and Installation
The PR 4510 is approved and certified as an add-on component for PR electronics 3000, 4000 and 9000 series devices. It supports mounting in Zone 2 / Div. 2 applications where the correct approval and installation requirements are met.
Approvals and authority requirements include ATEX, IECEx, UKEX, c FM us, CCC, c UL us, DNV Marine, EMC, ATEX and RoHS related information depending on configuration and region.
