Product Overview

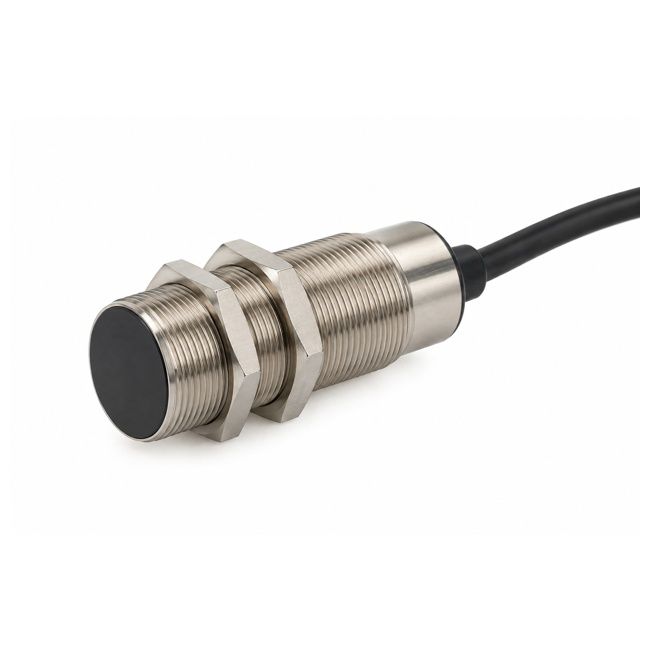

Schneider Electric Telemecanique XS630B1MBL2 is a cylindrical M30 inductive proximity sensor from the XS general purpose series. It is designed for non-contact metal detection in industrial automation, machinery position detection and process equipment monitoring.
This model features a 15 mm nominal sensing distance, flush-mountable installation, metal body construction and a 2 m cable connection, making it suitable for robust industrial applications where compact and reliable discrete sensing is required.
Main Product Information
Brand: Schneider Electric / Telemecanique Sensors
Model: XS630B1MBL2
Product range: Telemecanique Inductive proximity sensors XS
Sensor type: Inductive proximity sensor
Sensor name: XS6
Design: Cylindrical M30, 62 mm length
Mounting: Flush mountable
Electrical Specifications
The XS630B1MBL2 sensor uses a 2-wire wiring technique with discrete output signal. The output function is 1 NC, and the output circuit type supports AC/DC operation.
Rated supply voltage is 24 to 240 V AC/DC, 50/60 Hz. Switching capacity is 5 to 200 mA DC and 5 to 300 mA AC, with supply voltage limits from 20 to 264 V AC/DC.
Sensing Performance
Nominal sensing distance is 15 mm, with sensing range greater than 8 to 15 mm and operating zone of 0 to 12 mm. Differential travel is listed as 1 to 15 % of Sr.
Switching frequency is up to 25 Hz for AC operation and up to 500 Hz for DC operation. Maximum response delay is 0.5 ms, and maximum recovery delay is 2 ms.
Mechanical Data
The sensor has an M30 x 1.5 threaded cylindrical body. The enclosure material is nickel-plated brass, and the front material is PPS.
Electrical connection is by cable, with 2 m cable length and 2 x 0.34 mm² cable composition. The product includes one yellow LED for output state indication.
Protection And Environment
The XS630B1MBL2 provides IP68 double insulation according to IEC 60529 and IP69K protection according to DIN 40050, supporting demanding industrial environments.
Operating temperature range is -25 to 70 °C, and storage temperature range is -40 to 85 °C. The datasheet also lists vibration resistance of 25 gn and shock resistance of 50 gn for 11 ms.
Certifications And Reliability
The datasheet lists CE marking and UL / CSA product certifications. The product is also marked as a Green Premium offer in the sustainability information.
With a fixed metal body, high ingress protection and wide AC/DC supply voltage range, XS630B1MBL2 is suitable for replacement, maintenance and new machine projects.
Application Areas
Typical applications include metal object detection, machinery position feedback, conveyor systems, packaging equipment, automation lines, limit position sensing and industrial equipment monitoring.
