Product Overview

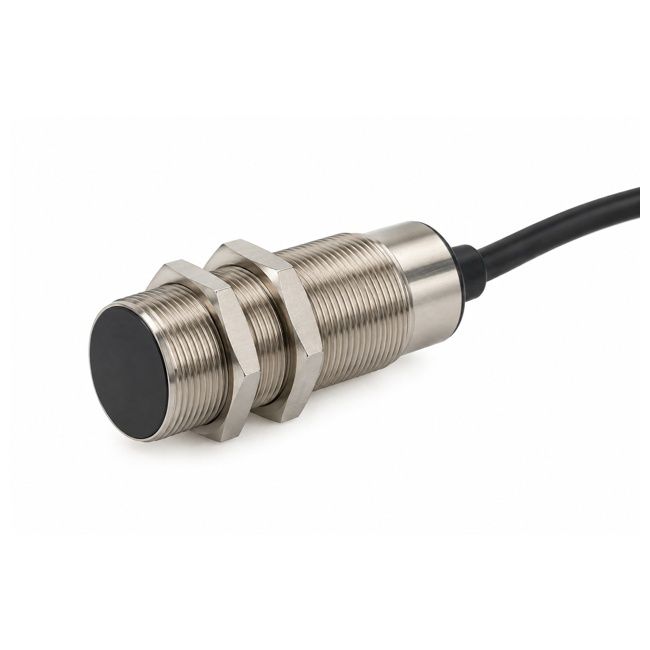

Schneider Electric Telemecanique XSAV11801 is an M30 inductive proximity sensor designed for rotation monitoring applications. It detects metal targets without contact and provides a discrete output signal for speed, movement and rotational supervision in industrial machinery.
This model belongs to the Telemecanique XS inductive proximity sensor range and is suitable for applications that require a metal-bodied, flush-mountable sensor with AC/DC supply compatibility and cable connection.
Main Product Information
Brand: Schneider Electric / Telemecanique Sensors
Model: XSAV11801
Product range: Telemecanique Inductive proximity sensors XS
Device application: Rotation monitoring
Sensor type: Inductive proximity sensor
Sensor name: XSA
Design: Cylindrical M30, 81 mm length
Mounting: Flush mountable
Electrical Specifications
The XSAV11801 uses a 2-wire wiring technique and provides a discrete output signal. The output function is 1 NC, and the output circuit type supports AC/DC operation.
Rated supply voltage is 24 to 210 V DC or 24 to 240 V AC 50/60 Hz. Switching capacity is 5 to 200 mA DC and 5 to 350 mA AC, with supply voltage limits from 20 to 264 V AC/DC.
Rotation Monitoring Performance
The nominal sensing distance is 10 mm, with sensing range greater than 8 to 15 mm and operating zone of 0 to 8 mm. The adjustable frequency range is 6 to 150 cycles per minute.
The sensor has repeat accuracy of 3 % of Sr, switching frequency up to 100 Hz and a standard run-up delay at power-up of 9 seconds.
Mechanical Data
The sensor has an M30 x 1.5 threaded cylindrical body, nickel-plated brass enclosure and PPS front material. The threaded length is 67 mm, and overall length is 81 mm.
Electrical connection is by cable, with 2 m cable length, 2 x 0.34 mm² cable composition and PVC wire insulation. A red LED indicates output state.
Protection And Environment
The XSAV11801 provides IP67 protection according to IEC 60529. Operating ambient temperature is -25 to 70 °C, and storage temperature range is -40 to 85 °C.
The metal body, wide supply voltage range and rotation-monitoring function make it suitable for conveyor systems, shafts, fans, motors and equipment where movement or speed status must be monitored.
Certifications And Reliability
The datasheet lists CE marking and UL, CSA and CCC product certifications. It is also listed as a Green Premium product in the sustainability information.
XSAV11801 is useful for replacement, maintenance and project procurement where a Telemecanique M30 inductive sensor with rotation monitoring function is required.
Application Areas
Typical applications include shaft rotation monitoring, conveyor movement checking, motor speed supervision, fan rotation feedback, machine safety indication and industrial automation equipment monitoring.
This page is prepared for customers searching for Schneider XSAV11801, Telemecanique XSAV11801, XSA rotation monitoring sensor, M30 inductive sensor, 10 mm proximity sensor, 2-wire AC/DC sensor and Schneider Electric sensor spare parts.
