Pepperl+Fuchs Switch Amplifier KFD2-SR2-Ex2.W Isolated Barrier 2-channel

Pepperl+Fuchs Switch Amplifier KFD2-SR2-Ex2.W Isolated Barrier 2-channel

Model: KFD2-SR2-Ex2.W

Supplier: Pepperl+Fuchs

Categories: Intrinsic Safety Barriers

Please contact us for more information.

PRODUCT DESCRIPTION

Pepperl+Fuchs Switch Amplifier KFD2-SR2-Ex2.W Isolated Barrier 2-channel


P+F




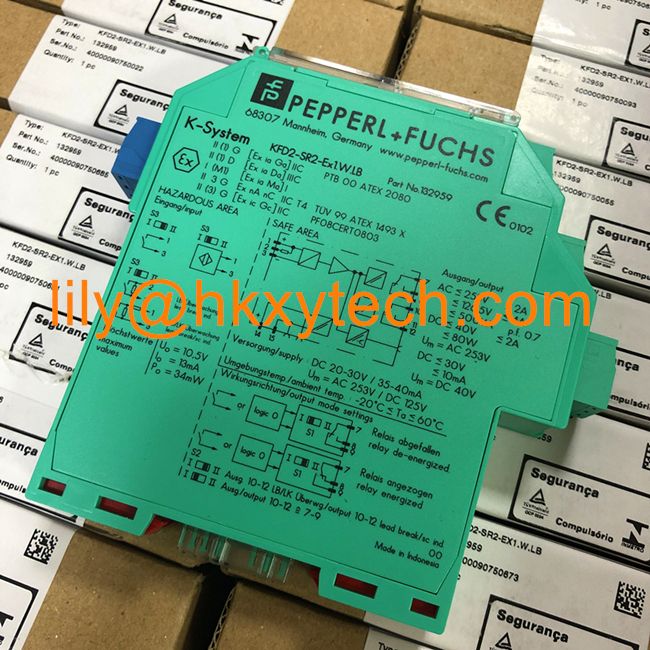

Switch Amplifier KFD2-SR2-Ex2.W


Features

  • 2-channel isolated barrier

  • 24 V DC supply (Power Rail)

  • Dry contact or NAMUR inputs

  • Relay contact output

  • Line fault detection (LFD)

  • Reversible mode of operation

  • Up to SIL 2 acc. to IEC 61508



Please note: All product-related documents, such as certificates, declarations of conformity, etc., which were issued prior to the conversion under the name Pepperl+Fuchs GmbH, also apply to Pepperl+Fuchs AG.



Function

  • This isolated barrier is used for intrinsic safety applications. It transfers digital signals (NAMUR sensors/mechanical contacts) from a hazardous area to a safe area.


  • The proximity sensor or switch controls a form C changeover relay contact for the safe area load. The normal output state can be reversed using switches S1 and S2. Switch S3 is used to enable or disable line fault detection of the field circuit.


  • During an error condition, the relays revert to their deenergized state and the LEDs indicate the fault according to NAMUR NE44.


  • A unique collective error messaging feature is available when used with the Power Rail system.


P+F Isolated Barrier



Datasheet excerpt: Technical data of  KFD2-SR2-Ex2.W

General specifications
Signal typeDigital Input
Functional safety related parameters
Safety Integrity Level (SIL)SIL 2
Supply
ConnectionPower Rail or terminals 14+, 15-
Rated voltage20 ... 30 V DC
Ripple≤ 10 %
Rated current≤ 50 mA
Power dissipation1 W
Power consumption< 1.3 W
Input
Connection sidefield side
Connectionterminals 1+, 2+, 3-; 4+, 5+, 6-
Rated valuesacc. to EN 60947-5-6 (NAMUR)
Open circuit voltage/short-circuit currentapprox. 8 V DC / approx. 8 mA
Switching point/switching hysteresis1.2 ... 2.1 mA / approx. 0.2 mA
Line fault detectionbreakage I ≤ 0.1 mA , short-circuit I > 6 mA
Pulse/Pause ratiomin. 20 ms / min. 20 ms
Output
Connection sidecontrol side
Connectionoutput I: terminals 7, 8, 9 ; output II: terminals 10, 11, 12
Output I, IIsignal, relay
Contact loading253 V AC/2 A/cos φ > 0.7; 126.5 V AC/4 A/cos φ > 0.7; 40 V DC/2 A resistive load
Minimum switch current2 mA / 24 V DC
Energized/De-energized delayapprox. 20 ms / approx. 20 ms
Mechanical life107 switching cycles
